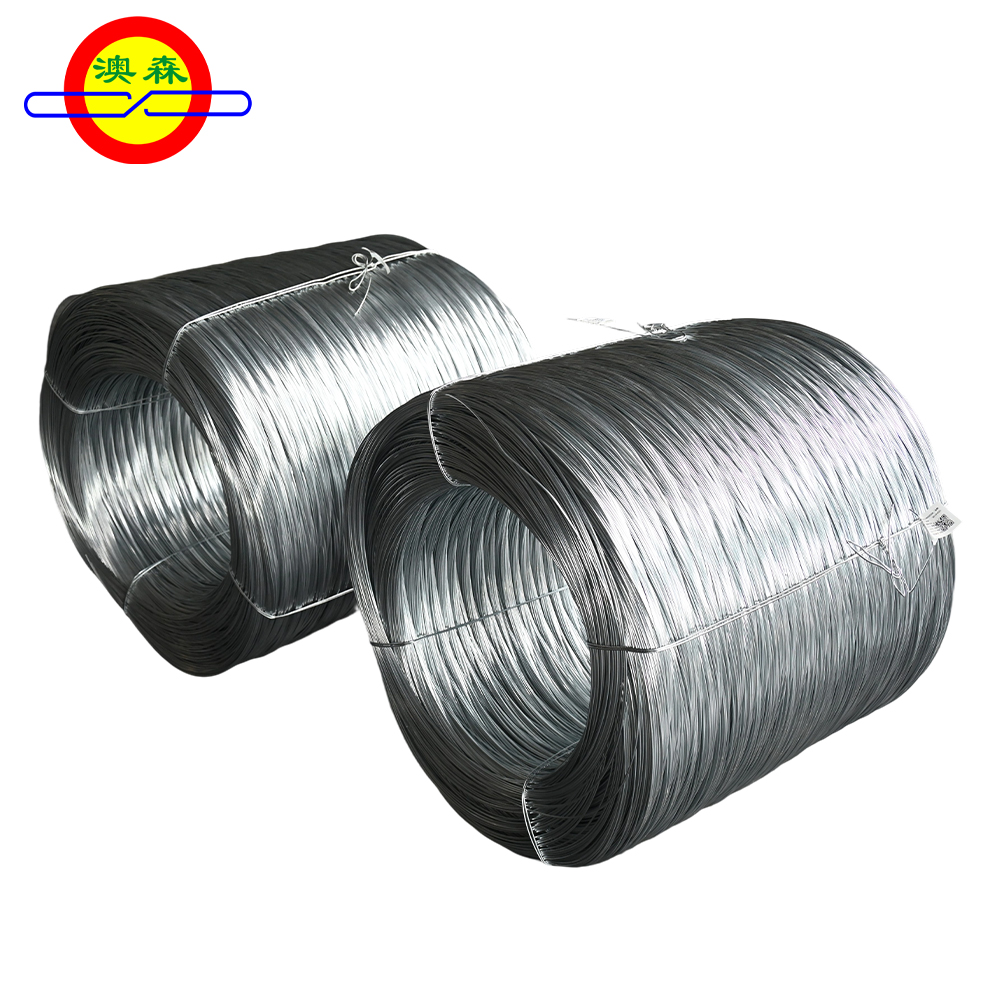

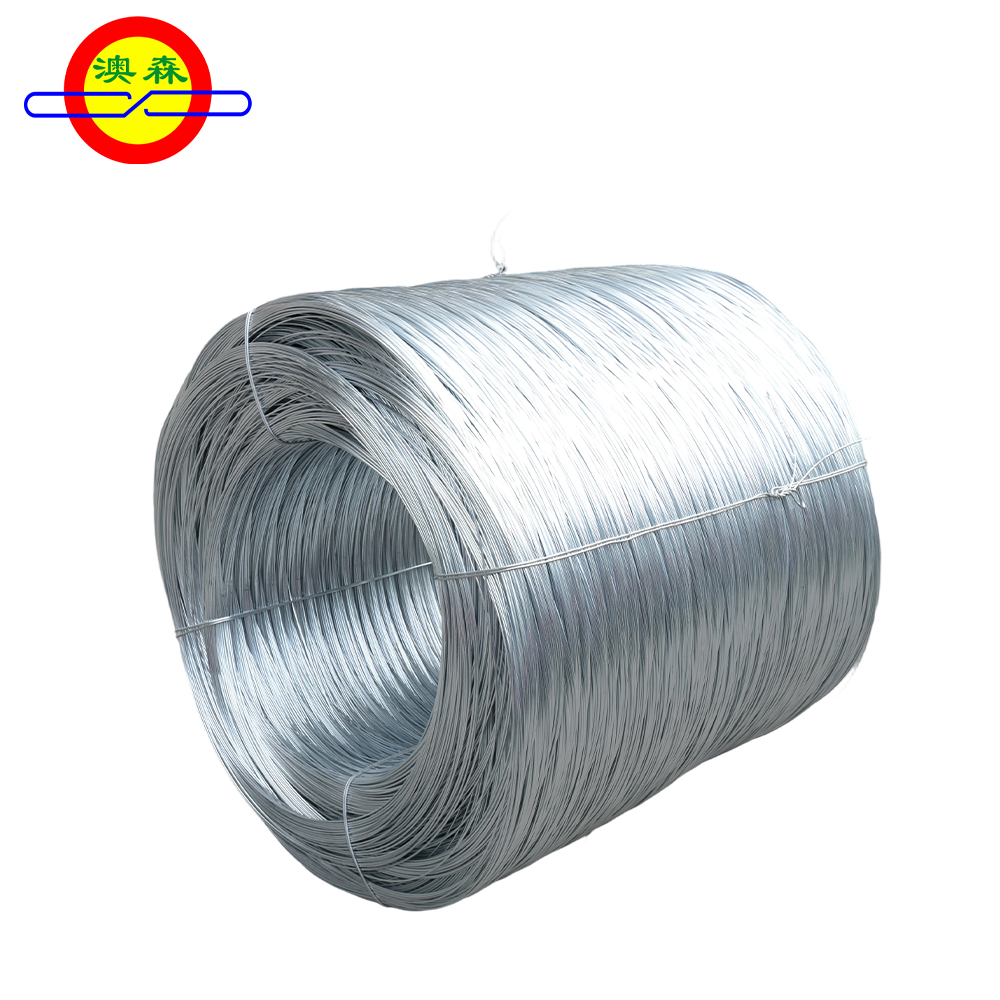

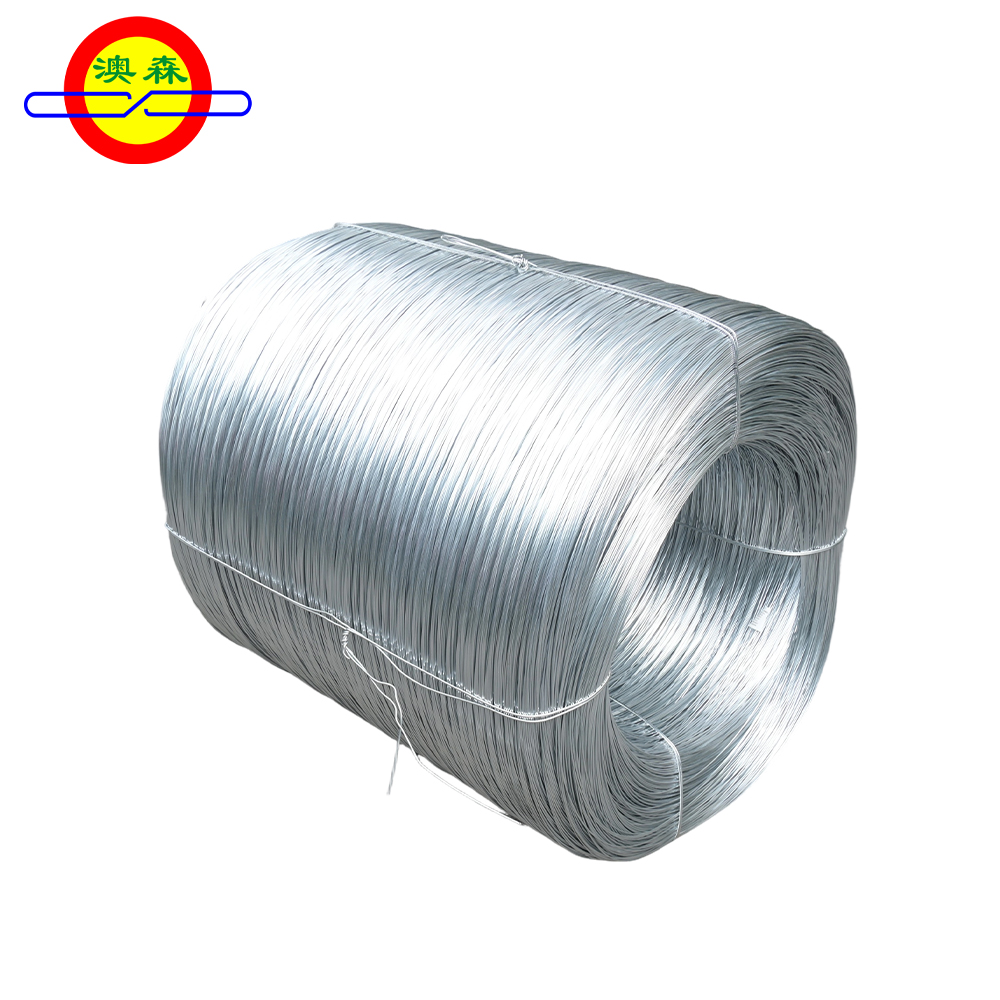

Aosen hot-dip common galvanized iron wire has good brightness, moderate softness and hardness, with zinc coating amount reaching 40-60g/m² (customizable).
Characteristics: Bright color, soft wire quality, corrosion-resistant, anti-aging, sun-resistant, durable.
Description
We are a professional manufacturer of electro-galvanized wire, hot-dip galvanized wire, phosphatized steel wire, spring steel wire and annealed wire.
Equipped with fully automated production equipment, our factory adopts a high-precision tension and linear speed synchronization system to ensure the zinc coating remains undamaged with a uniform thickness. This achieves neat and tight coiling of products and maximizes adaptability to rapid mass production.
Galvanized Iron Wire: 1.8–5.0mm, Hot-selling Sizes: 1.9/1.95/2.0/2.5/2.65/3.0/4.25, Tensile Strength: 350–550MPa
Galvanized Steel Wire: 1.4–4.0mm, Hot-selling Sizes: 1.6/1.8/2.0/2.5/3.0, Tensile Strength: 800–1200MPa
Electro-galvanized Wire: Low process cost and excellent corrosion resistance. It is widely used in steel products such as fasteners, clothes hangers, welded mesh panels, and construction binding wire.
Hot-dip Galvanized Wire: Thick coating and long corrosion-resistant service life, with relatively low precision. It is mainly used for outdoor long-term service components such as power transmission towers, highway guardrails, livestock fencing and hillside protective netting.
Zinc coating thickness can reach up to 300g/㎡.
Product Customization: Raw materials, zinc coating thickness, tensile strength, weight, length, packaging method (e.g., plastic inside and woven outside), and other customer requirements.
We adhere to the following international standards in the supply of industrial HDG,EG,GI,GL wire products.
ASTM A641/A641M、ASTM B633
BS 443、BS EN 10244-2
JIS G 3547、JIS H 8641
ISO 1461、ISO 2081
Wire products meeting specific quality requirements can also be supplied upon request.
We also have a complete set of inspection equipment. We conduct inspections on each batch of products, and all products are delivered from the factory with accompanying inspection reports.
Product Parameters
| Product Name | Hot-dip Common Galvanized Iron Wire |
| Wire Diameter（mm） | φ1.8-φ5.0 |
| Zinc Coating Amount（g/㎡） | 40-60 |
| Tensile Strength（MPa） | 385-495 |
| Elongation （%） | >20% |
| Material | SAE1008 / SAE1006 / SAE1018 / SAE1045 SAE1055 / SAE1060 / SAE1065 / SAE1070 |
| Coating | Galvanized |
| Processing Method | Hot-Dip |
| Advantages/Features | 1.Surface gloss: ⭐⭐⭐⭐⭐ 2.Uniform and smooth coating：⭐⭐⭐⭐⭐ 4. Durability: ⭐⭐⭐ |
| Execution Standard | YB/T 5294-2009 |
| Is it alloy | No |
| Tolerance（mm） | -0.05 |
| Application Fields | 1.Mountain protection （slope protection net）;municipal engineering （guardrail net, chain link net）. 2.Highway/railway facilities（barbed wire, highway guardrail）. 3.Livestock facilities （grassland net, hexagonal net）. |
Is it special steel （If yes, list steel grade） | No |
| Processing Services | Packaging：①Plastic packaging ②Inner plastic outer woven Packing Method: Steel strap bundling |
| Support Customization | Materials、Zinc coating amount、Tensile strength、Weight、Length、Packaging、Other customer requirements |
| Length Width Height (cm)/piece | Inner diameter 45*outer diameter90 *height80 |
| Weight/piece | 500-800kg |

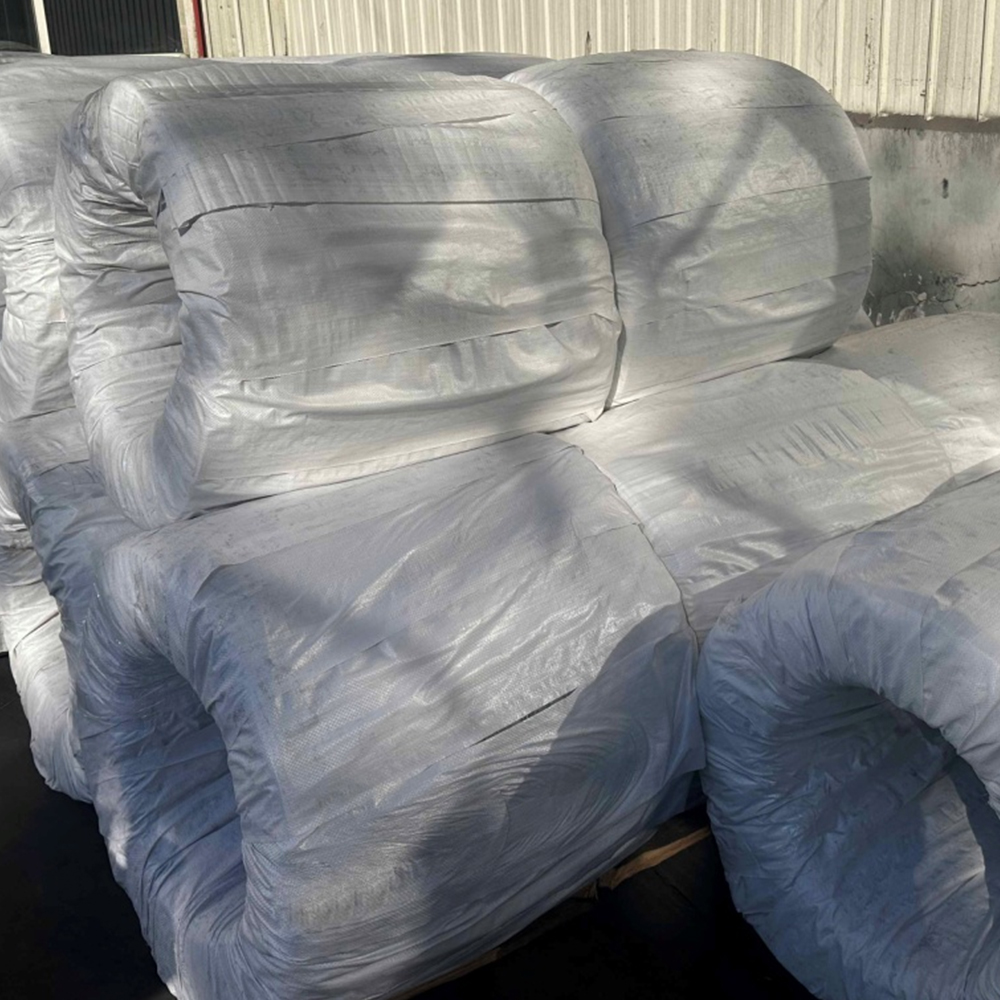

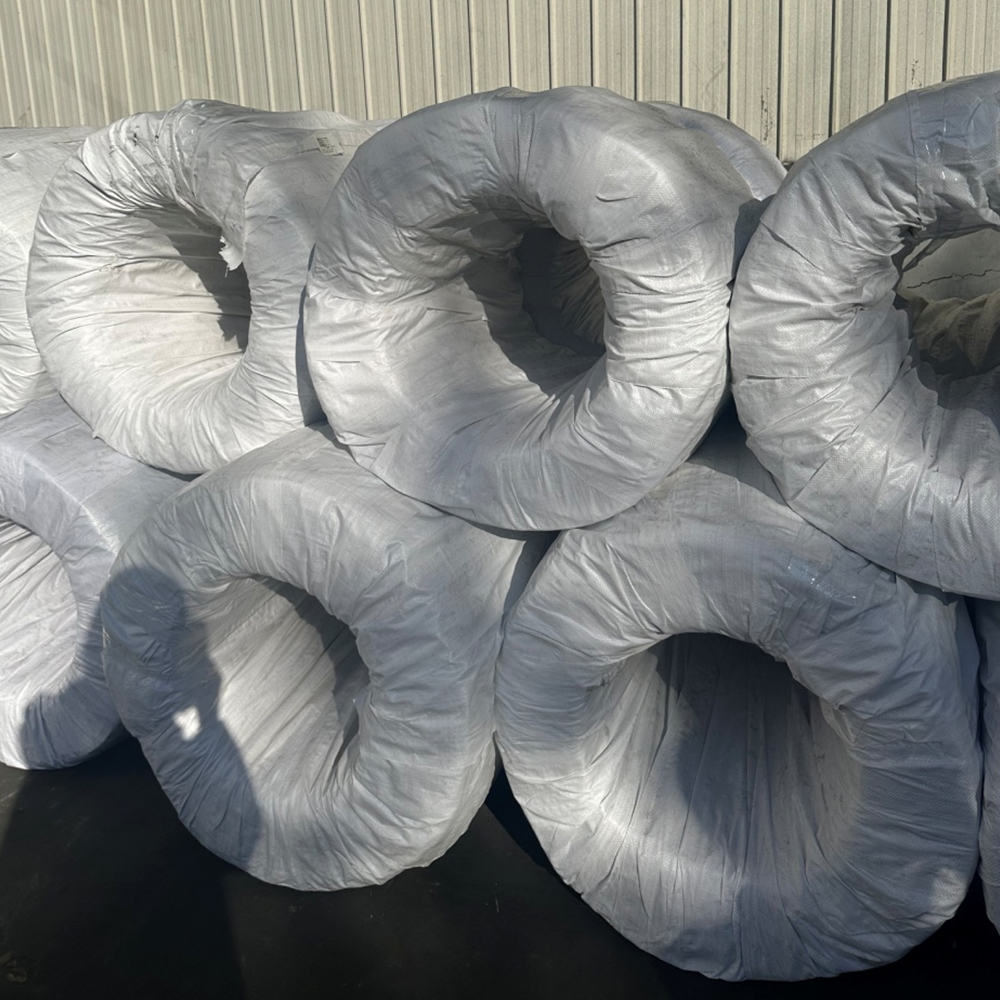

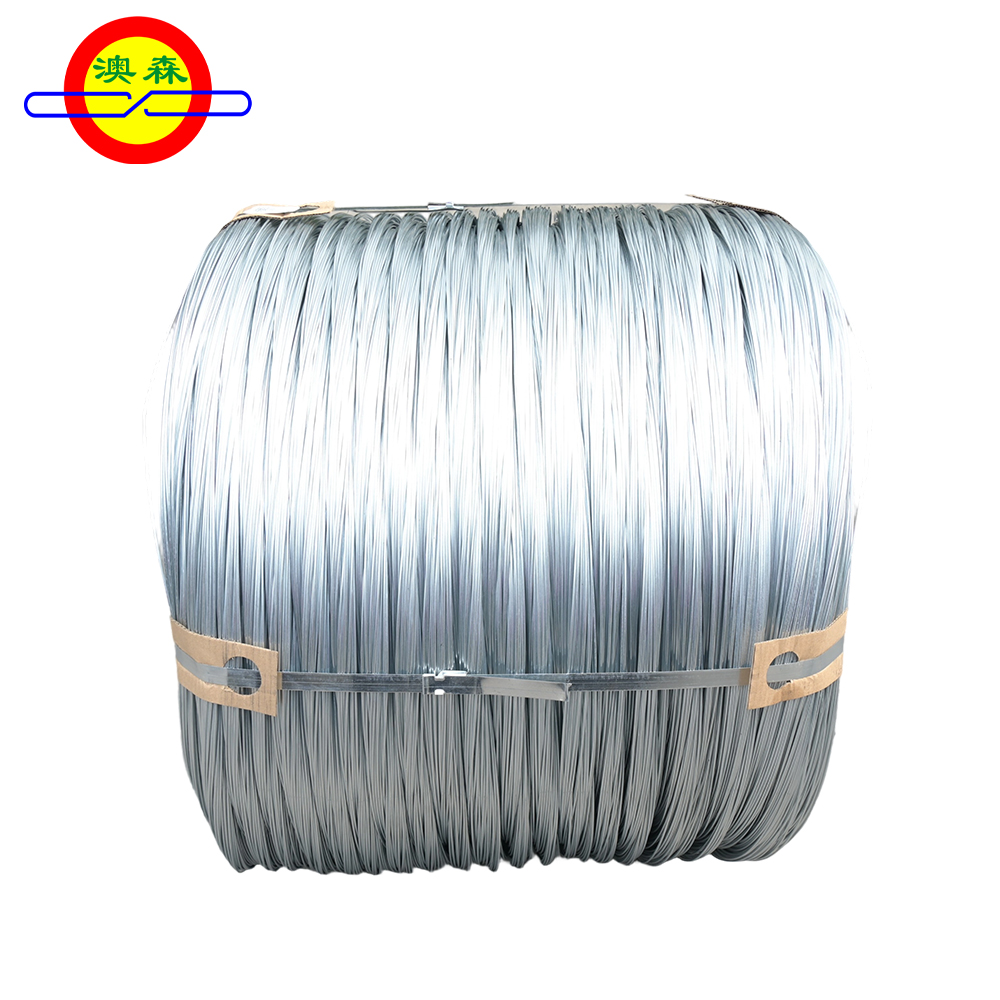

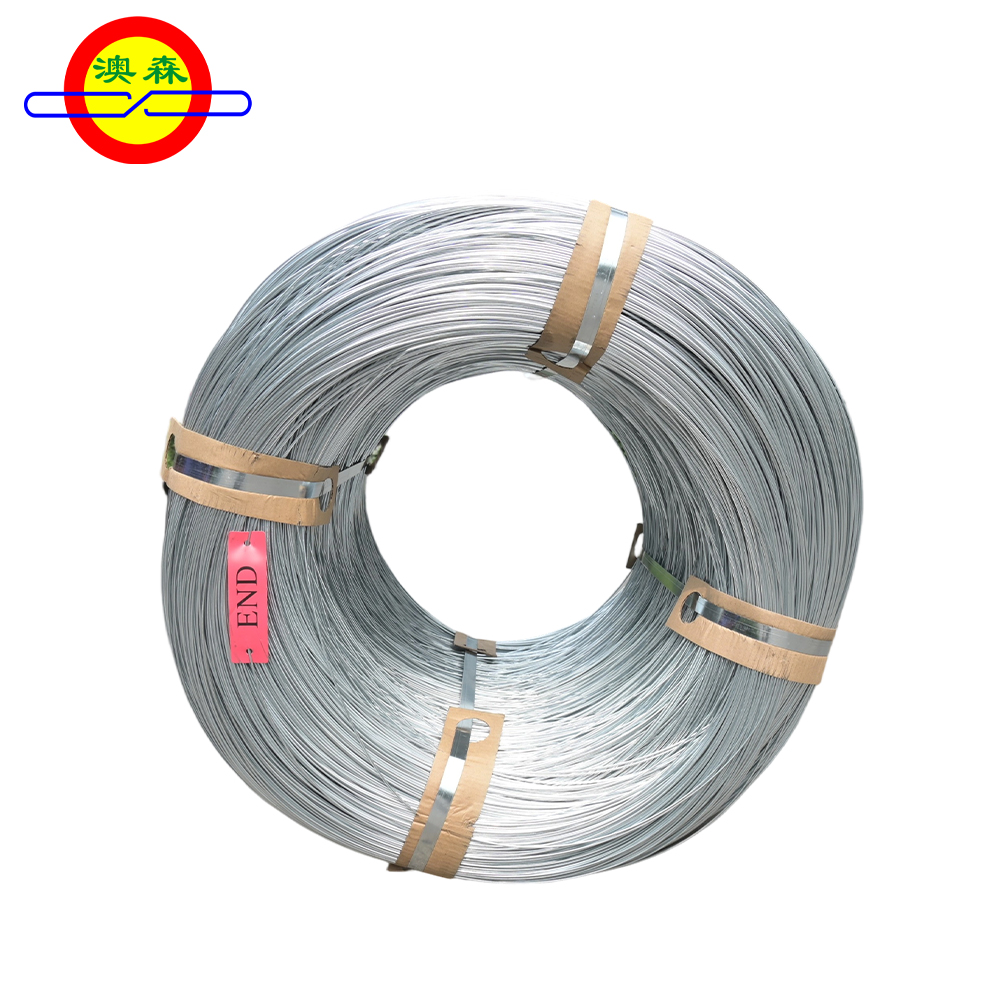

Packaging
Logistics
Aosen Metal Products supports rail, road, sea, and multimodal transport. It has a fleet of over 1,800 vehicles, with a daily factory throughput of 80,000 tons.
Application Field

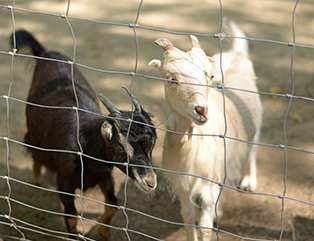

Livestock facilities

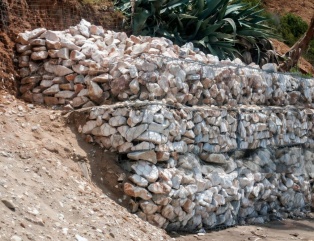

River management

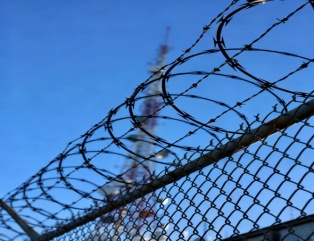

Barbed wire

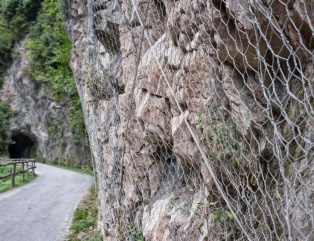

Mountain protection

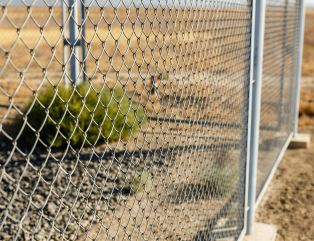

Wire mesh

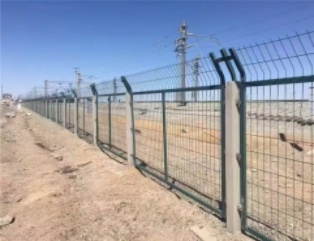

Railway guardrails
