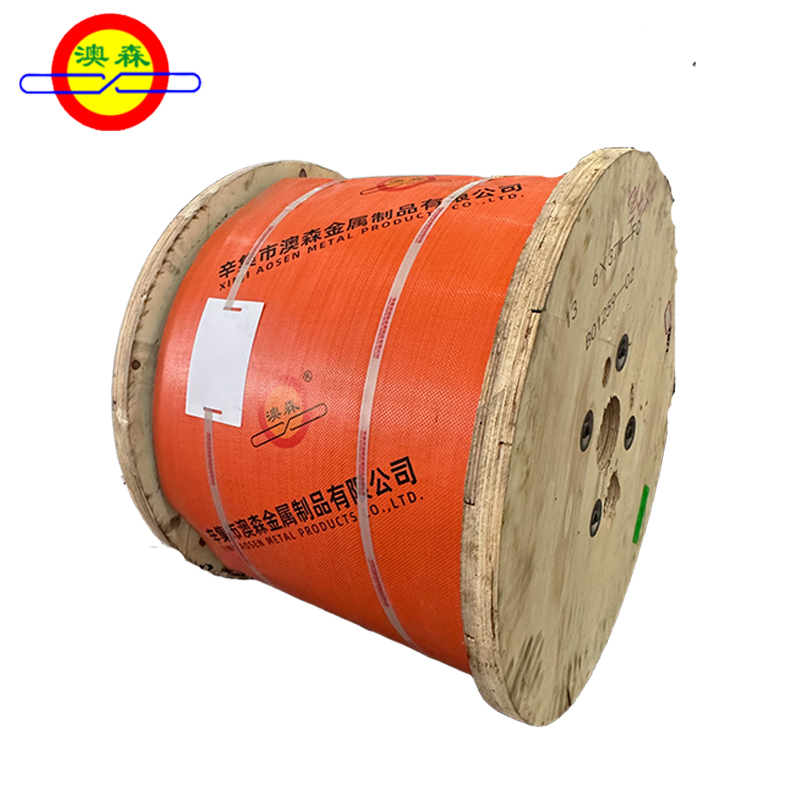

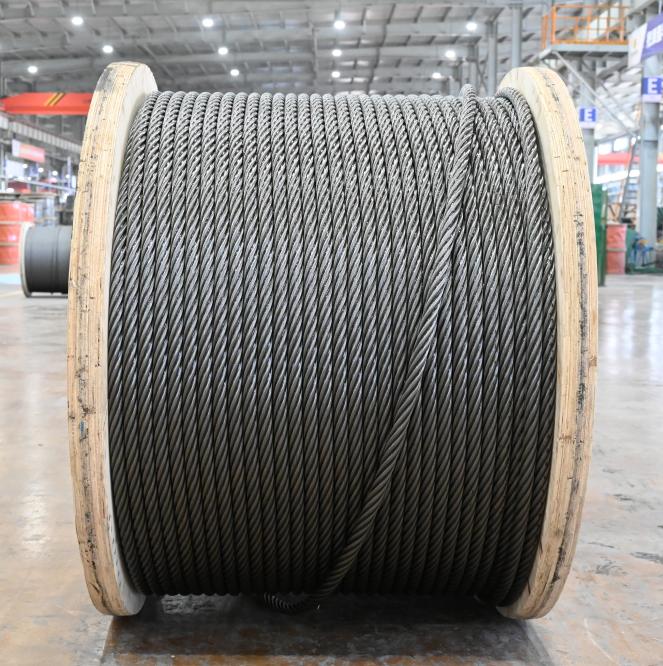

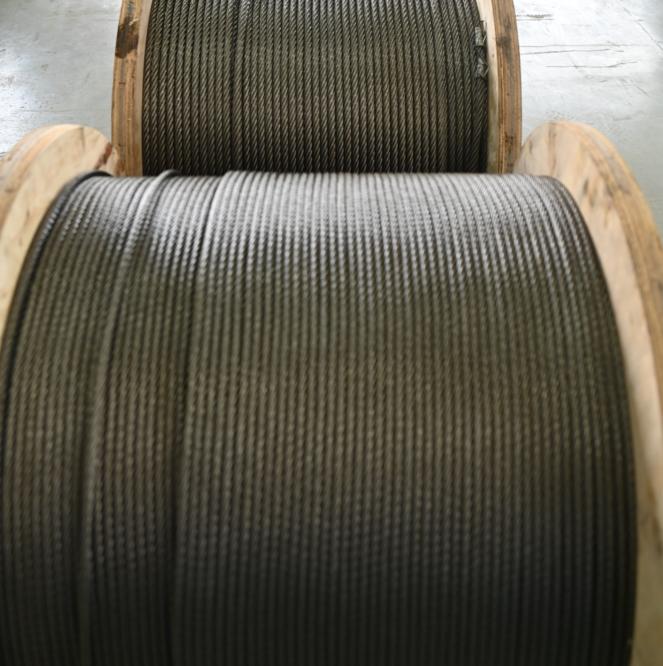

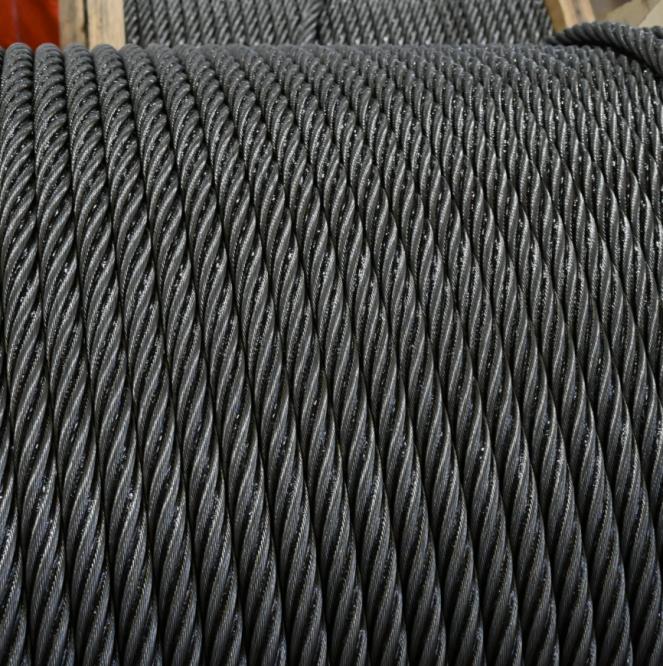

Four-Strand Fan-Shaped Strand Steel Wire Rope

Four-Strand Fan-Shaped Strand Steel Wire Rope is a special construction within our steel wire rope range. It consists of four fan-shaped strands laid around a combined fiber core. Compared with conventional round-strand rope, the shaped strands create a larger contact area between adjacent strands and between the rope and drum, helping distribute contact pressure more evenly during repeated winding and heavy-load operation.

Aogang supplies 4V×39S+5FC and 4V×48S+5FC constructions in diameters from 16 mm to 40 mm, with tensile strength grades from 1570 MPa to 1960 MPa. Bright and hot-dip galvanized surfaces are available for mine hoisting, counterweight systems, port handling equipment and other industrial lifting applications.

This Four-Strand Fan-Shaped Strand Steel Wire Rope is a special-purpose construction. It should not be used as a direct replacement for conventional round-strand or multi-strand rotation-resistant rope based on diameter alone. Load, lifting height, drum dimensions, reeving arrangement, operating cycle and permitted load rotation must be checked before selection.

Common Structures

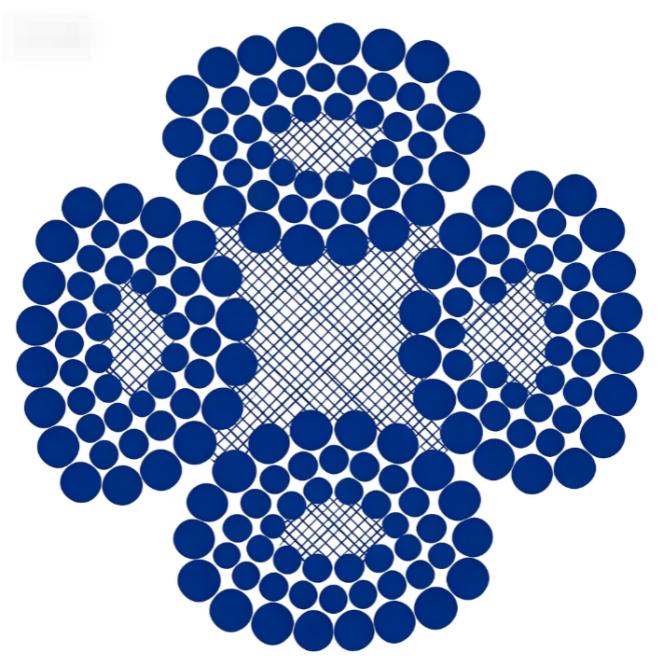

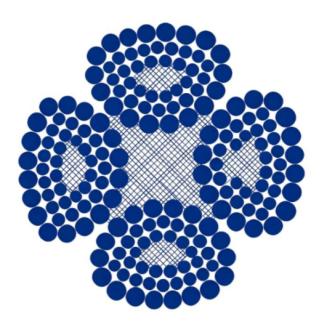

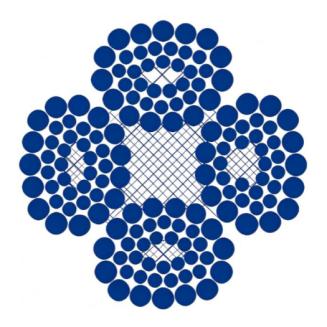

Main spot goods structures: 4V×39S+5FC, 4V×48S+5FC

(Note: V = triangle/fan-shaped special-shaped strand, 5FC = five-combination fiber core; NFC natural fiber core and SFC synthetic fiber core are exclusive supporting cores, with better buffering and shock absorption effect than ordinary rope cores.)

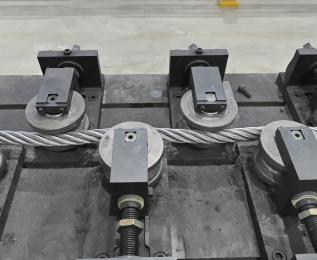

Core Structural Process Features

Strand body structure: Four-strand one-piece fan-shaped special-shaped cross-section surrounding arrangement, different from conventional round strand steel wire rope, with large fitting area between strands and extremely strong integrity

Stress form: Line contact pressure bearing inside the strand, approximate surface contact with the drum surface outside the strand, small contact stress, wear-resistant and extrusion-resistant.

Twisting process: Precise interactive twisting process, offsetting the torsional stress of the rope body, inherently anti-twist, not easy to twist and knot, suitable for long-distance vertical lifting.

Available Constructions and Specifications

Four-Strand Fan-Shaped Strand Steel Wire Rope Advantages

• Low elongation rate shaped structure, extremely small force deformation, full running stability, suitable for long-term uniform speed hoisting operations in mines.

• Excellent inherent anti-torsion performance, no spinning, no twisting, no winding during lifting, high safety in counterweight lifting working conditions.

• Large fan-shaped fitting contact surface, wear-resistant and pressure-resistant, anti-extrusion deformation, more stable use and longer service life compared with ordinary round strand steel wire rope.

• Five groups of fiber cores have strong oil storage and lubrication, long-term internal rust prevention, uniform fatigue loss, high overall safety factor.

• Compact structure without strand loosening, uniform load distribution, not easy to break wires and fail under sudden impact load, suitable for high-risk industrial and mining operations.

4V×39S or 4V×48S: What Should You Select?

The difference between 4V×39S and 4V×48S is not limited to the number of wires. Their internal wire arrangements affect flexibility, outer-wire contact, fatigue performance and resistance to drum crushing.

Selection should be based on:

• Nominal and maximum dynamic load;

• Hoisting height;

• Drum and sheave diameter;

• Groove dimensions;

• Number of winding layers;

• Operating frequency;

• Required breaking force;

• Exposure to water, humidity or corrosive contaminants;

• Specifications of the existing rope.

Core and Surface Selection

Application

Mine hoisting, large hoisting equipment, port loading and unloading equipment, etc.

FAQ

What is the difference between 4V×39S and 4V×48S?

They have different internal wire arrangements and wire counts. These differences affect flexibility, fatigue resistance, external wear and resistance to radial pressure. The construction should be selected according to the lifting equipment rather than diameter alone.

Can this rope directly replace a conventional round-strand wire rope?

Not without technical confirmation. The contact pattern, metallic area, breaking force, rotational characteristics and drum compatibility may be different.

Is Four-Strand Fan-Shaped Strand Steel Wire Rope non-rotating?

It can provide controlled residual torque under suitable conditions, but it should not automatically be classified as a non-rotating rope for every lifting system. Free-hanging and rotation-sensitive loads require a specific engineering review.

Should I select a bright or galvanized surface?

Bright rope is suitable for controlled environments with appropriate lubrication and maintenance. Hot-dip galvanized rope should be considered for underground humidity, water exposure or corrosive outdoor conditions.

Can you supply a fixed rope length?

Yes. Please provide the working length, installation allowance, end connection and permitted length tolerance.

Is the rope diameter enough for a quotation?

No. Construction, strength, core, lay direction, surface, length and operating conditions are also required.

Packaging Logistics Delivery

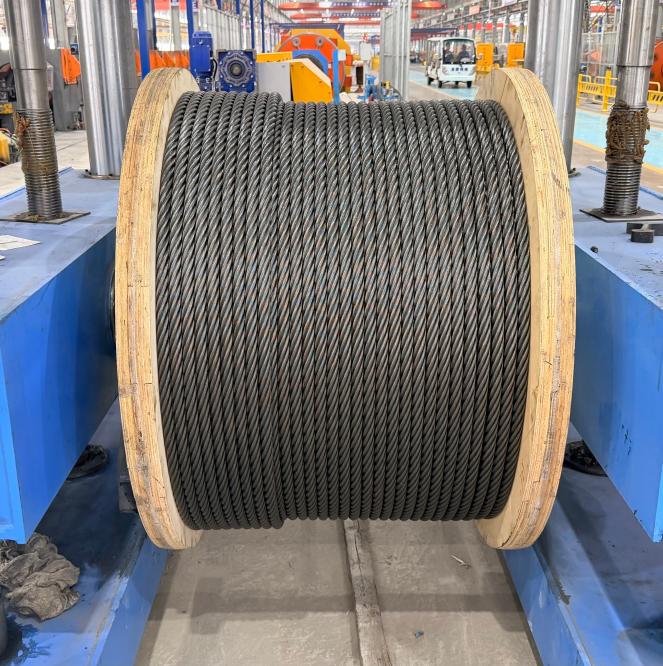

Customized Protective Packaging

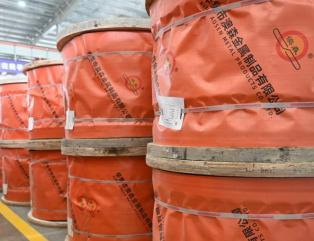

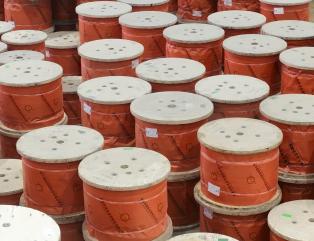

According to rope diameter and fixed length, select wooden reels, iron-wood reels, iron reels for special packaging. Customized tooling reels can avoid residual torque generated during transportation; internally wrapped with special moisture-proof and rust-proof paper, outer layer fully wrapped with PE waterproof film, moisture-proof and rust-proof, anti-collision and deformation, suitable for domestic and international long-distance combined transportation.

Global Logistics Delivery

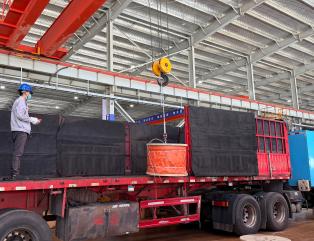

Main commonly used specifications have sufficient spot stock and support global shipment. Relying on Aosen Group's own complete logistics system, domestic full coverage of road transportation, sea transportation, and multimodal transportation; foreign trade orders are supported by container sea freight and China-Europe freight trains. Both small and large batch orders can be accepted, with strict fulfillment and on-time delivery according to contract agreed periods, suitable for scattered procurement and industrial and mining large-batch centralized procurement needs.
