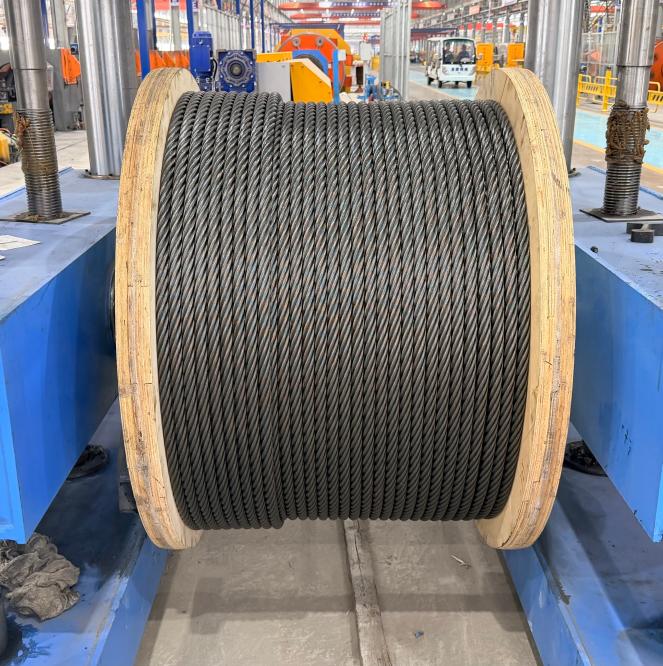

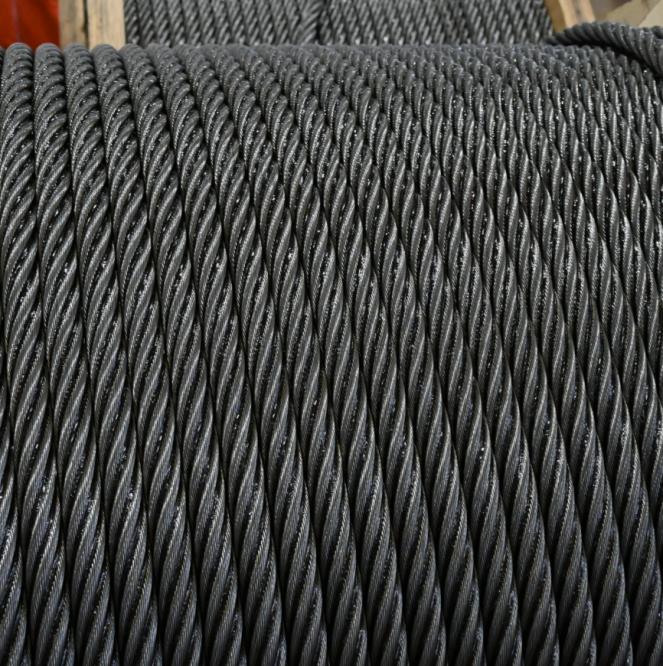

Aosen galvanized steel wire rope adopts the group's self-produced high-carbon steel as raw material throughout the series. Relying on the integrated production of a large-scale dedicated galvanizing workshop, it eliminates outsourcing processing links, with full control over coating stability and raw material quality. The product is processed through multiple processes such as electro-galvanizing and hot-dip galvanizing. The surface zinc layer is dense and uniform with strong adhesion. Graded coatings provide full coverage, effectively resisting water vapor, salt spray, acid and alkali corrosion for a long time. It is specially adapted to lifting, traction, and hoisting operations in various corrosive working conditions.
Aosen Advantage: The factory is equipped with 17 professional galvanizing production lines: 9 electro-galvanizing production lines, 6 hot-dip galvanizing production lines, and 2 zinc-aluminum alloy dedicated production lines, with an annual output of galvanized wire up to 400,000 tons. It is a leading large-scale galvanized wire production base in China.
Main plating levels: Class B, Class AB, Class A
Level Notes: Class B for conventional outdoor corrosion protection, Class AB for moderate salt spray corrosion protection, Class A for severe marine corrosion protection. Weathering life is much higher than ordinary galvanized layers, suitable for high-salt coastal harsh environments.
Electro-galvanizing process: Thin and uniform zinc layer, high rope body flexibility, clean and smooth appearance, suitable for inland outdoor and mild corrosive working conditions, with high cost-performance ratio.
Hot-dip galvanizing process: Sufficient zinc layer thickness and strong adhesion, impact-resistant and wear-resistant, excellent acid and alkali resistance and salt spray resistance, preferred for ports and water conservancy.
Zinc-aluminum alloy process: Extremely low porosity of alloy coating, doubled anti-oxidation and seawater corrosion resistance, belonging to special customized coating for marine engineering.
Diameter range: Φ6mm–Φ80mm, non-standard sizes can be customized as needed
Tensile strength: 1570MPa, 1770MPa, 1960MPa, 2160MPa

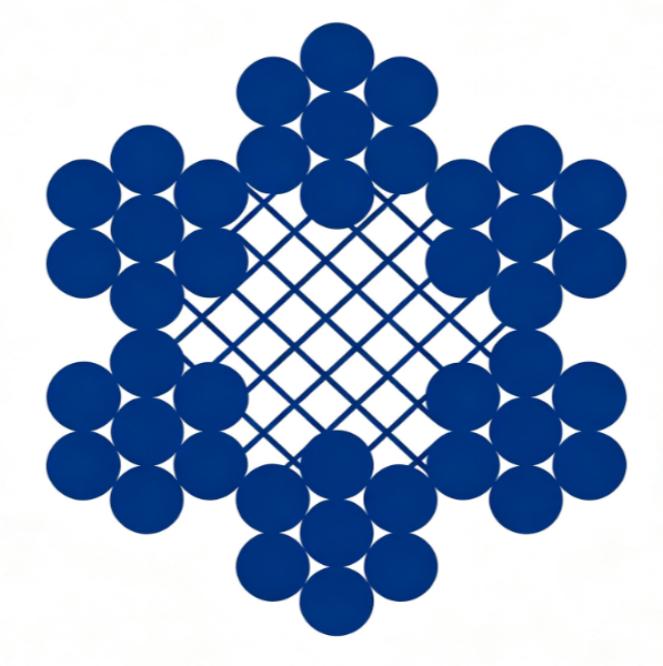

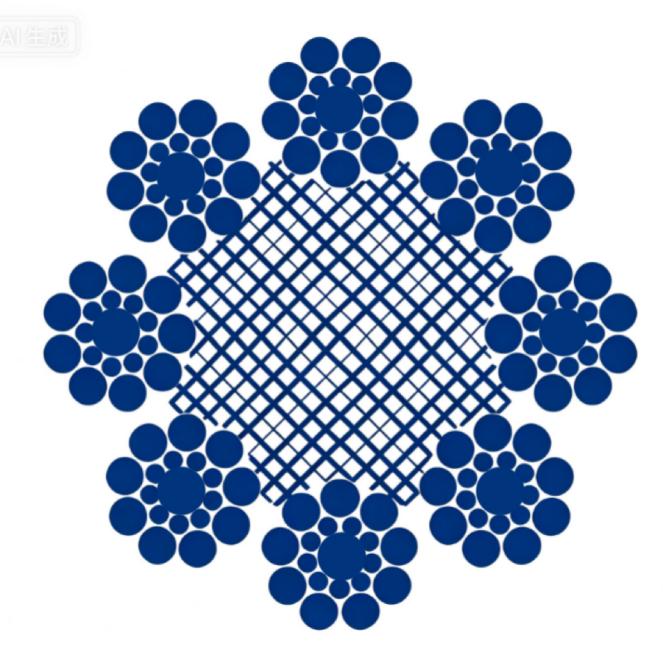

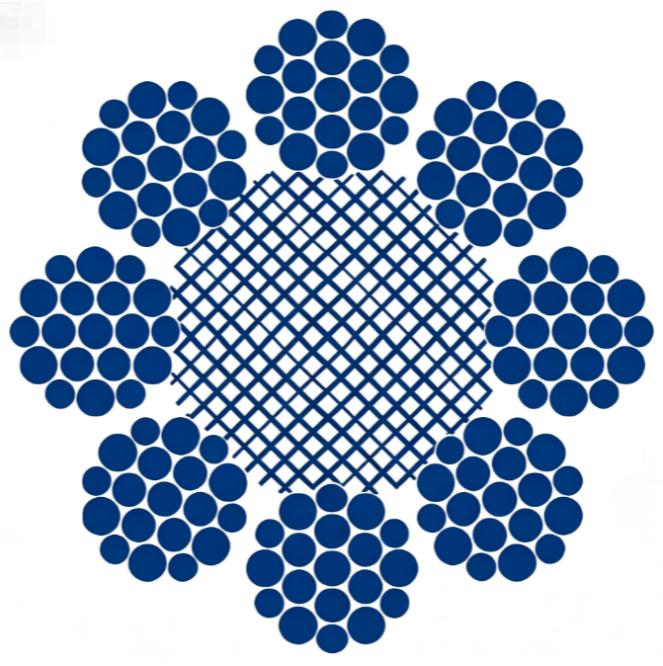

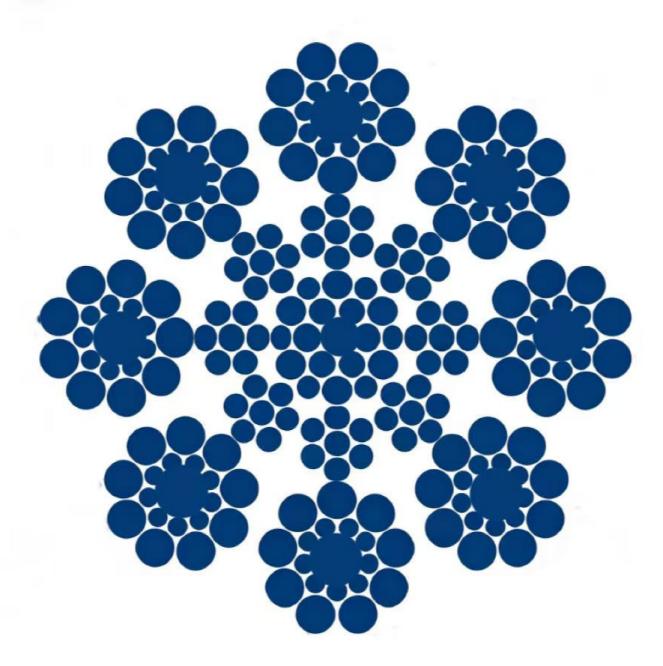

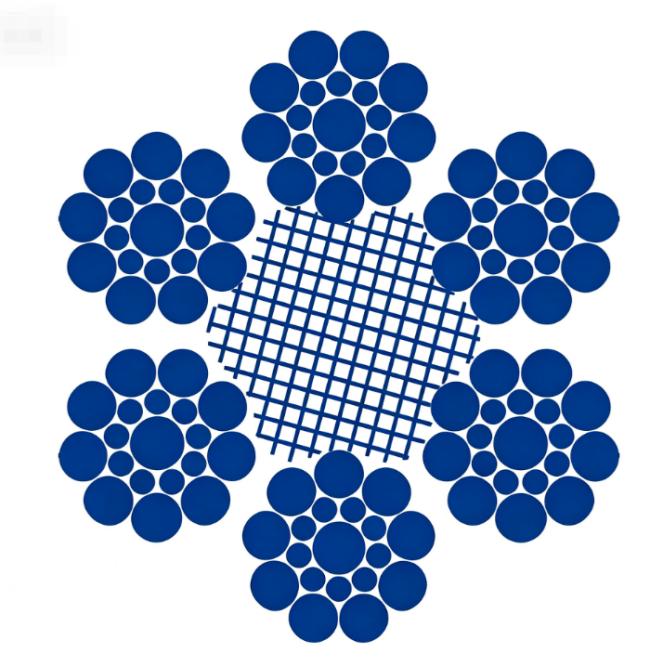

Supporting rope cores: FC fiber core and IWRC steel core two categories, selected as needed
Surface coating: Electro-galvanized, hot-dip galvanized, 10% zinc-aluminum alloy coating optional
Plating level: Class B, Class AB, Class A support customization
Executive standards: GB/T 20118-2025, GB/T 8918-2006, GB 33955-2024, GB 8903-2024
Strong coating adhesion, not easy to fall off, salt spray resistance, acid and alkali resistance, seawater erosion resistance, service life in corrosive working conditions far exceeds bright steel wire rope.
Balanced strength and toughness of the product, not easy to brittle fracture or rust and break wires, high running stability in outdoor open-air and temporary working conditions.
Full-process production, controllable coating thickness, regular rope body twisting, anti-twist and not easy to loosen strands, with both load-bearing and anti-corrosion dual performance.
Multiple plating levels optional, precisely matching light, medium and heavy corrosion working conditions at all levels, avoiding coating surplus waste, suitable for various budget selections.
Suitable for corrosive environments: marine ships, port terminals, outdoor open-air, fishery, chemical plants, water conservancy gates and other acid-alkali, salt spray, high-humidity corrosive working conditions.
Supports order-based exclusive customization, can customize structure, diameter, tensile strength, lay direction; can customize modified oil-impregnated rope body, reinforced fiber core styles, suitable for special equipment, corrosive environments and other special use requirements.

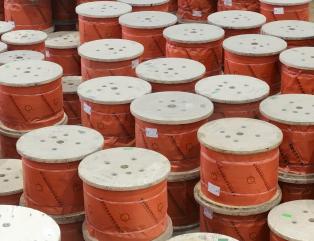

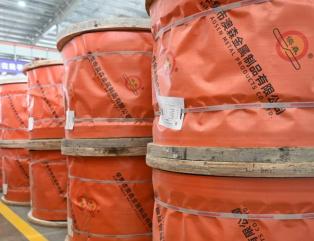

According to rope diameter and fixed length, select wooden reels, iron-wood reels, iron reels for special packaging. Customized tooling reels can avoid residual torque generated during transportation; internally wrapped with special moisture-proof and rust-proof paper, outer layer fully wrapped with PE waterproof film, moisture-proof and rust-proof, anti-collision and deformation, suitable for domestic and international long-distance combined transportation.

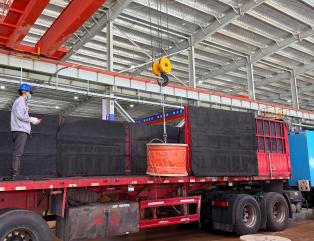

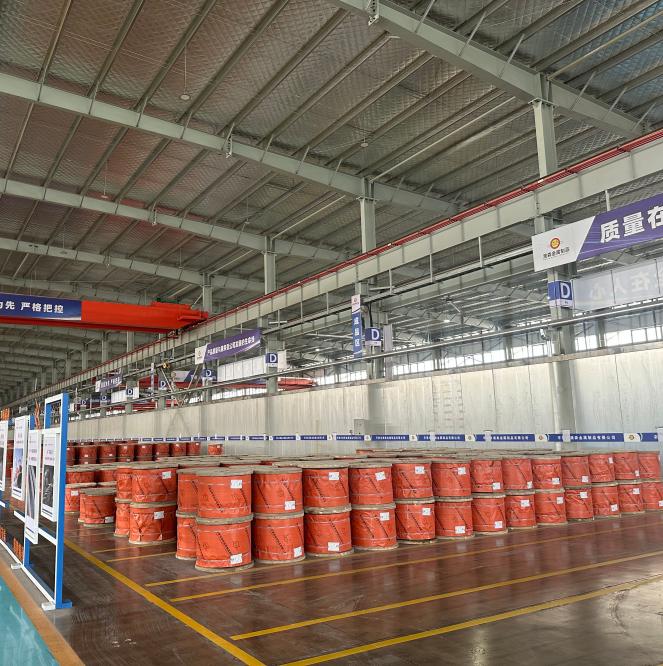

Sufficient spot stock of main commonly used specifications, supporting global shipment. Relying on Aosen Group's own complete logistics system, domestic full coverage of road transportation, sea transportation, and multimodal transportation; foreign trade orders are supported by container sea freight and China-Europe freight trains. Both small and large batch orders can be accepted, with strict fulfillment and on-time delivery according to contract agreed periods, suitable for scattered procurement and large-batch centralized procurement needs for maritime and industrial mining.
Logistics
Aosen supports rail, road, sea, and multimodal transport. It has a fleet of over 1,800 vehicles, with a daily factory throughput of 80,000 tons.
