Multi-layer Strand Anti-rotation Steel Wire Rope

A load that spins under single-line lifting isn't just an inconvenience — it's a safety hazard. That's the problem the Rotation-Resistant Wire Rope, a Multi-Strand Rotation-Resistant Wire Rope from Aogang, is built to solve: multiple strand layers are laid in opposing directions, so the torque generated by outer layers cancels the torque from inner layers under load, making it a genuine anti rotation wire rope for single-line lifting.

Common Structures

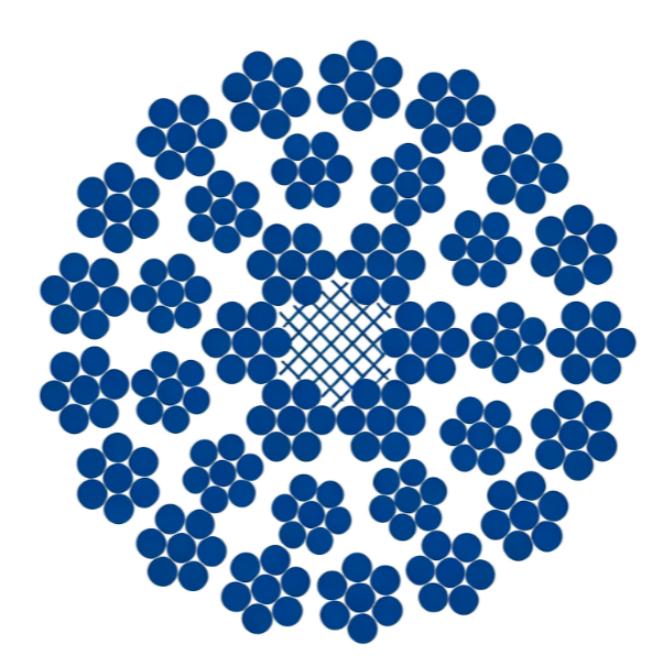

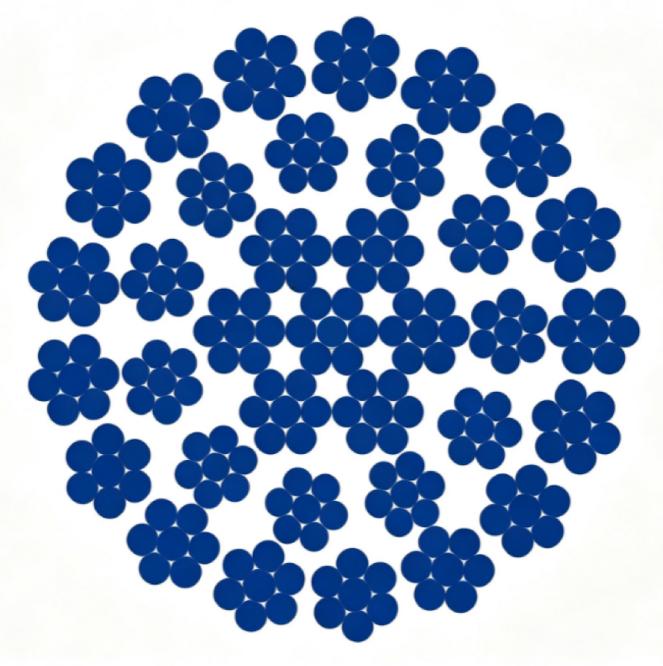

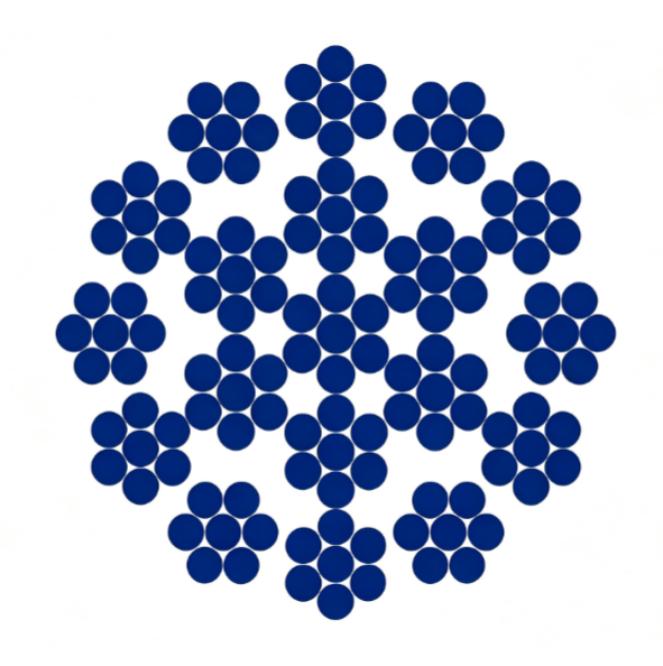

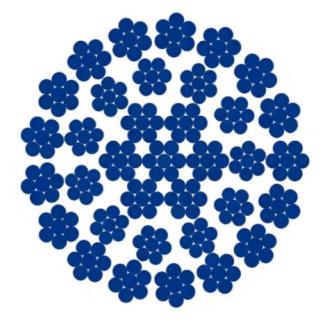

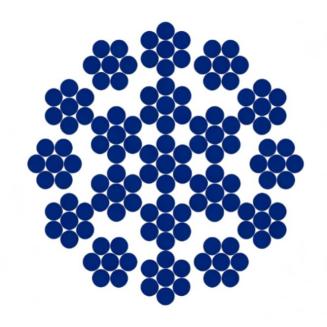

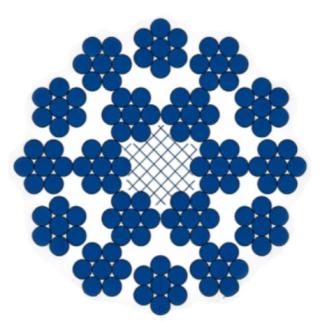

Main spot goods specifications: 18×7, 24W×7, 34×7, 24W×17S, 24W×19S, 34×19S, 35W×7, 35W×17S, 35W×19S

(Note: The numbers represent the total number of strand layers and the number of steel wires within the strand. Multi-layer reverse twisting is the core structural feature of anti-rotation.)

How Rotation Resistance Works

• Multiple strand layers (typically 3 or more) laid in alternating, opposite directions

• Torque from outer and inner layers offsets under load, limiting rope/load rotation

• Functions as an effective anti rotation wire rope even in single-part (single-fall) reeving

• Classified as Multi-Strand Rotation-Resistant Wire Rope, distinct from standard 6-strand rope

• Reduces risk of cabling, pinching, and drum crossover on multi-layer spooling

Core Process Features

Adopts double-layer/multi-layer strand reverse interactive twisting forming, with opposite lay directions for inner and outer layers, autonomously offsetting the internal rotational stress generated by the steel wire rope under force. The overall structure is tight and stable, not easy to loosen strands or deform under long-term heavy load, with extremely low residual torsion.

Rotation-Resistant Wire Rope Basic Parameters

Diameter range: Φ12–Φ70mm, full coverage of medium and large specifications, non-standard sizes support customized processing

Tensile strength: 1570MPa, 1770MPa, 1960MPa, 2160MPa

Optional rope cores: FC fiber core, IWRC independent steel core, WSC metal strand core, customizable EPIWR plastic-coated steel core

Surface treatment: Bright, hot-dip galvanized / electro-galvanized two processes optional

Executive standards: GB/T 8918-2006, GB 33955-2024, GB/T 20118-2025

Exclusive Quality Control: Equipped with special testing procedures, strictly testing key indicators such as rotation times, breaking force, repeated bending flexibility, roundness, etc. Each batch is provided with test records

Advantages of Rotation-Resistant Wire Rope

• Super strong anti-rotation characteristics, no torsion during vertical lifting and deep-well long-distance lifting, no winding of lifting tools and cargo, greatly improved operation stability.

• High metal filling rate under the same nominal diameter, excellent overall breaking force, outstanding surface wear resistance and repeated bending fatigue life.

• Moderate flexibility, strong impact load resistance, suitable for high-height, long-stroke continuous hoisting operations.

• Multi-layer composite structure disperses force, balanced internal stress, not prone to wire breakage, bulging and other problems under long-term heavy load.

Applications of Rotation-Resistant Wire Rope

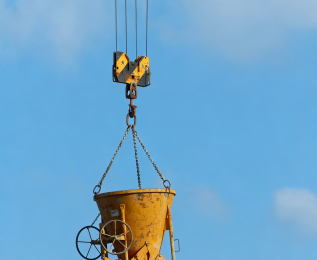

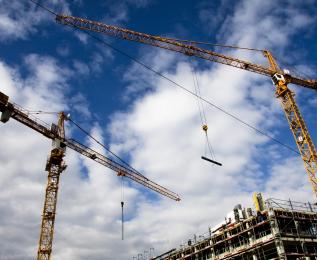

• Tower cranes and mobile cranes on single-line/single-fall duty

• Personnel and material hoisting requiring minimal load spin

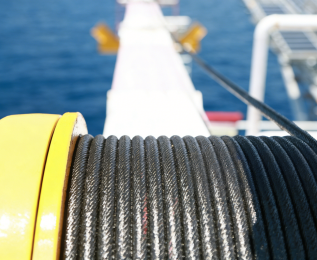

• Offshore and shipboard cranes with multi-layer spooling drums

• Any lifting task where an anti rotation wire rope is specified for operator safety

Customized Production Services

Supports order-based customization, can adjust steel wire rope structure, nominal diameter, tensile strength, lay direction as needed; can process injection-molded and plastic-coated rope cores and other products to enhance anti-corrosion performance, suitable for special equipment, corrosive environments and other special use requirements.

Packaging, Logistics and Delivery

Customized Packaging

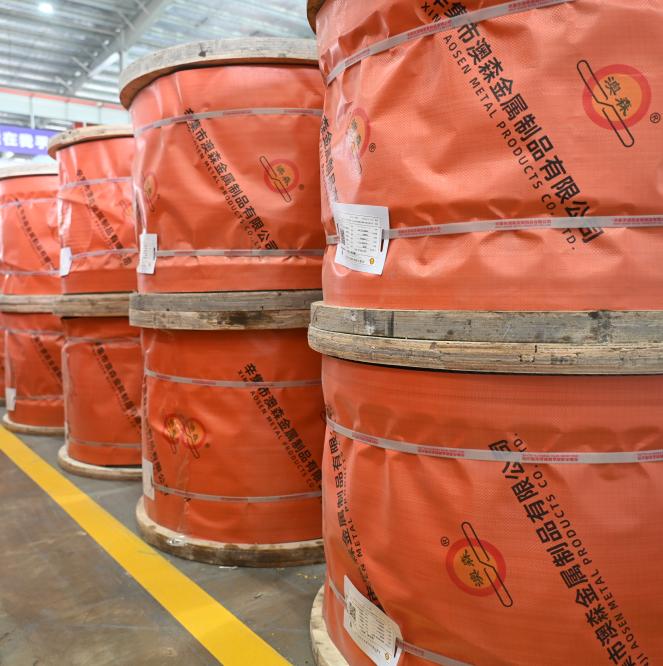

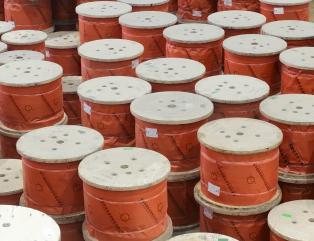

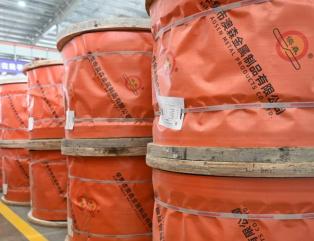

According to rope diameter and fixed length, select wooden reels, iron-wood reels, iron reels for packaging. Special reel structure can suppress residual torque during transportation; internally wrapped with moisture-proof and rust-proof paper, outer layer fully wrapped with PE waterproof film, moisture-proof and rust-proof, anti-collision and deformation, suitable for domestic and international long-distance combined transportation.

Global Logistics

The factory maintains mainstream specifications in stock and supports global shipment.

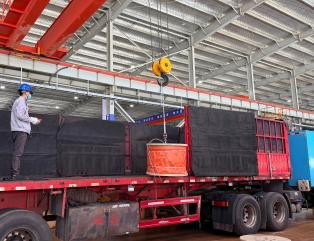

Relying on Aosen Group's own complete logistics system, domestic can arrange road transportation, sea transportation, and multimodal transportation to ensure delivery timeliness;

Foreign trade orders are supported by container sea freight, China-Europe freight trains and other channels.

Both small and large batch orders can be accepted, with strict fulfillment and on-time delivery according to contract agreed periods, and full-process performance controllable.

FAQ

• Q: Is this rope truly non-rotating, or just low-rotation?

• A: Like most multi-layer rotation-resistant ropes, it significantly reduces — but does not fully eliminate — rotation. For zero-rotation requirements, additional swivel hardware is recommended alongside the rope.

• Q: Can it replace my current OEM rotation-resistant rope?

• A: Yes, provided diameter, breaking load, and lay ratio match your crane manufacturer's specification — Aogang can match construction to an existing sample or datasheet.

• Q: How is rotation performance verified before shipment?

• A: Each production batch is checked for lay ratio consistency and breaking strength; rotation behavior is validated against the layer-torque design calculations for that construction.

• Q: What support is available after delivery?

• A: Aogang provides custom end-fitting options (sockets, thimbles, swaged terminals), documentation for equipment records, and assistance with future reorders or spare rope stock.
