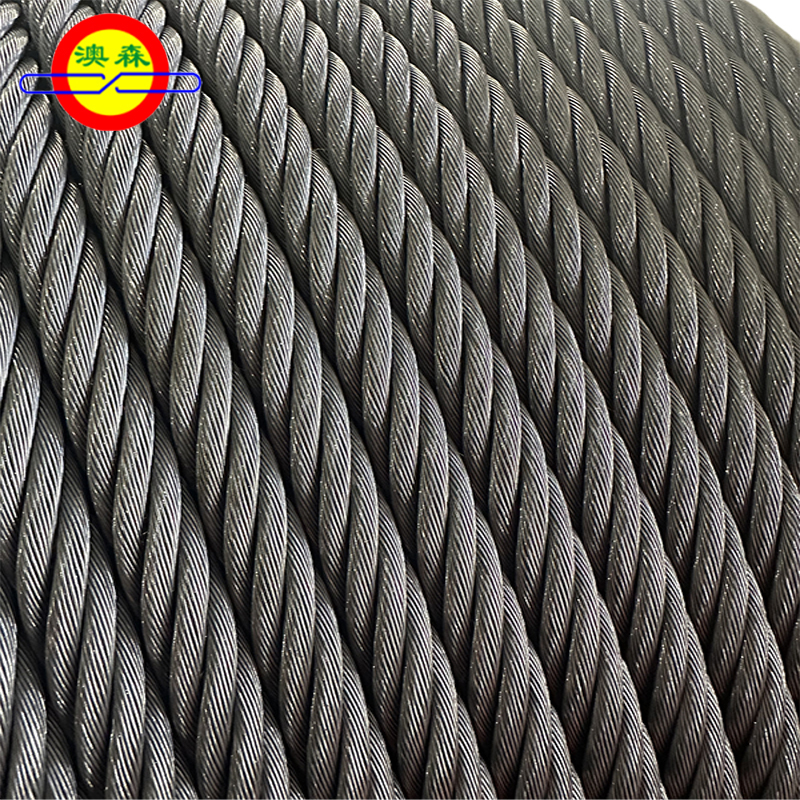

Aosen single strand steel wire rope is a special steel cable dedicated for static tension. It is directly twisted from only a single layer or multiple layers of steel wires, with no outer strands and no independent rope core. The product uses the group's self-produced high-quality high-carbon steel wire rod, through integrated twisting process. It has dense structure, high metal cross-sectional area utilization rate, and extremely low elastic elongation. It is specially designed for static tensioning, supporting, and hanging working conditions, and is widely used in long-term static stress scenarios such as power, communication, curtain wall, bridge tensioning, and steel structure fixing.

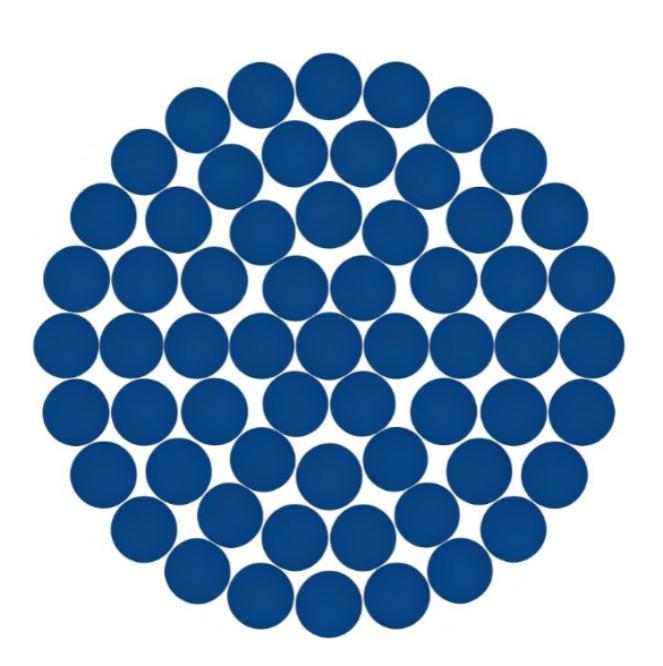

Main spot goods structures: 1×7, 1×19, 1×37, 1×61, 1×91, 1×127
1×7: 1 center wire + 6 outer layer steel wires, strong rigidity and high cost-performance ratio;
1×19: 1 center + 6 inner layer + 12 outer layer, better flexibility than 1×7;

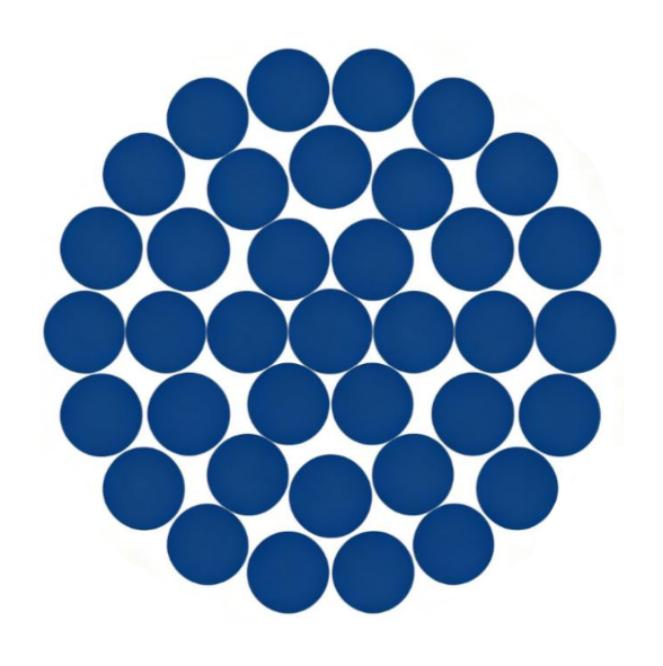

1×37: Three-layer steel wire arrangement, suitable for small bending tensioning scenarios.
Forming structure: Single strand twisting, no multi-strand winding, no additional rope core
Steel wire contact: Tight fitting, no loose gaps
Stress characteristics: Only suitable for static tension, not suitable for pulley reciprocating bending and dynamic hoisting operations
Diameter range: Φ1–Φ120mm, non-standard fixed lengths can be customized
Tensile strength: 1570MPa, 1770MPa, 1960MPa
Surface treatment: Bright, galvanized optional, coating supports A/AB/B level customization
Supporting cores: No additional rope core, overall single strand one-piece forming
Executive standards: GB/T 20118-2025, GB/T 33364-2016

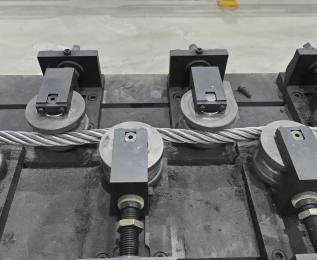

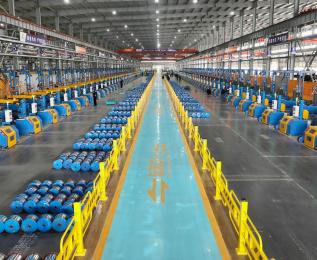

Factory Quality Control: Full batch testing of breaking force, zinc layer thickness, twisting uniformity, elongation rate, etc., with complete quality inspection reports provided
High metal filling coefficient, large breaking force under the same diameter, sufficient safety margin for static load bearing.
Small elastic elongation and strong dimensional stability, not easy to relax under long-term tensioning, no need for frequent secondary tightening.
Compact overall structure, galvanized version is corrosion-resistant, resistant to rainwater and salt spray erosion, not easy to rust and break wires under long-term outdoor use.
High overall rigidity, not easy to twist or loosen, no twisting deformation during hanging and tensioning, neat and beautiful installation forming.

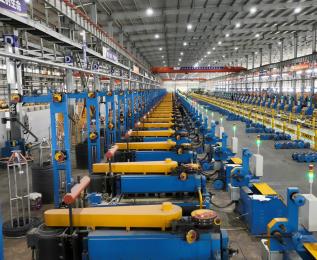

Simple production process, short supply cycle, sufficient spot stock, lower comprehensive cost for static fixing scenarios.
Smooth and wear-resistant surface, no inter-strand friction loss, stable and long service life under static working conditions.
Suitable for pure static tensioning, hanging, and supporting working conditions, not suitable for dynamic operations such as pulley hoisting and frequent bending: power overhead ground wire, communication cable hanging stay cables, iron tower/chimney tensioning and fixing, building curtain wall load-bearing stay cables, small tensioning components for bridges, steel structure enclosure tensioning, outdoor guardrail stay wires, billboard fixing, small equipment limit bundling, cableway auxiliary support cables, etc.
Supports order-based exclusive customization, can adjust diameter, tensile strength, lay direction, fixed length as needed; can customize galvanized coating, suitable for high-corrosion coastal and chemical plant outdoor environments.

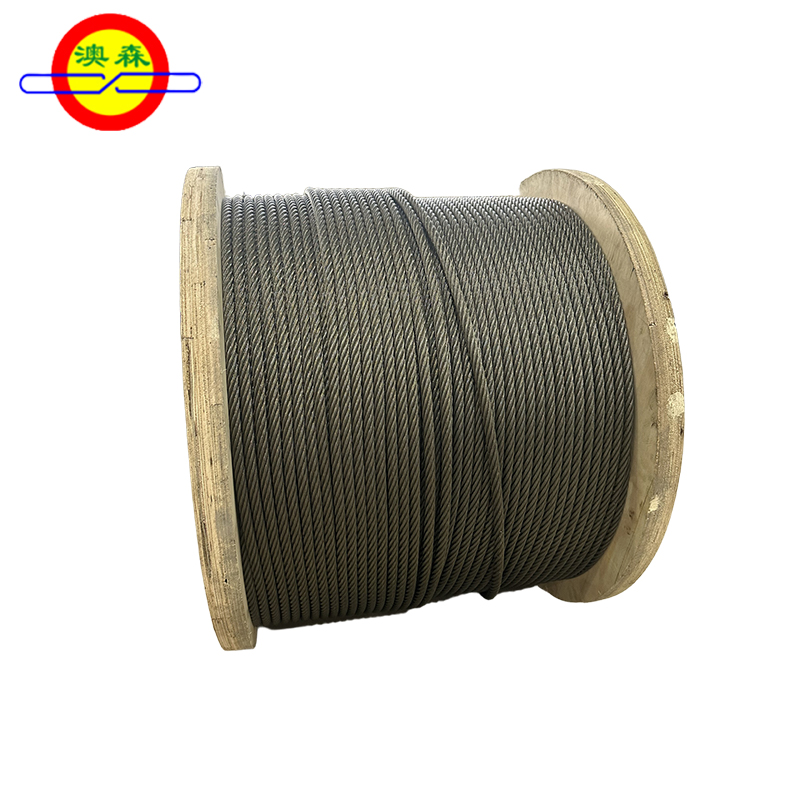

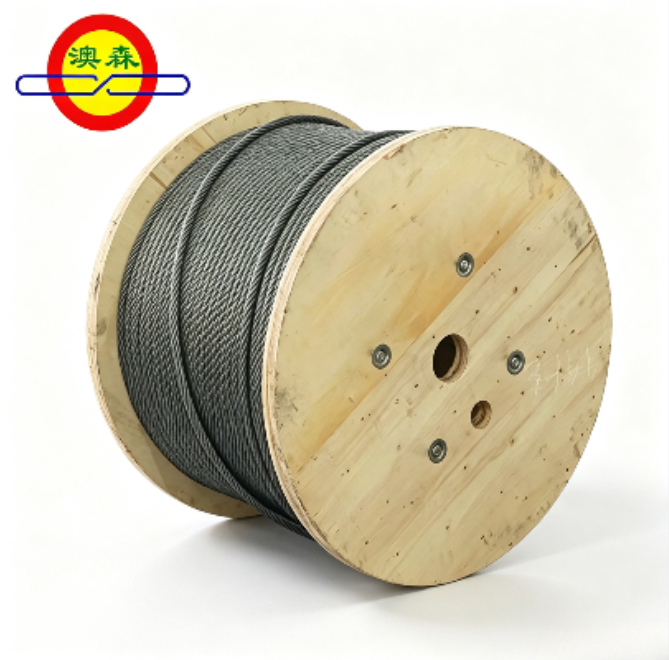

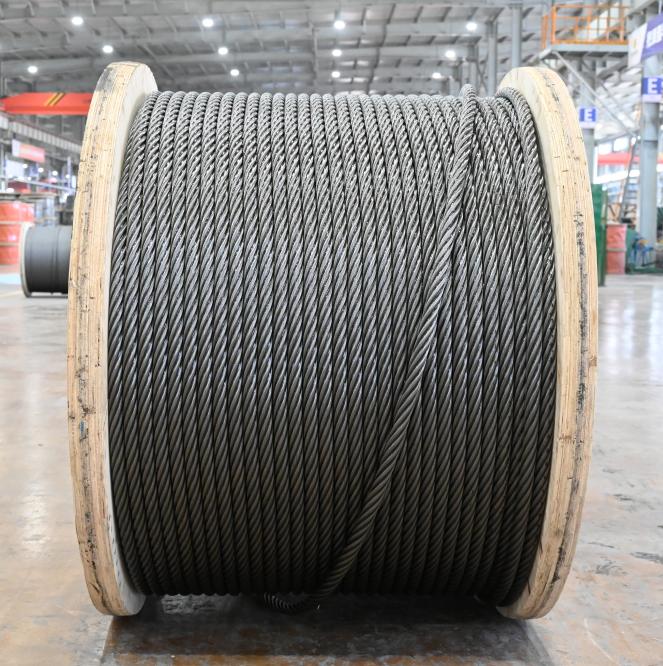

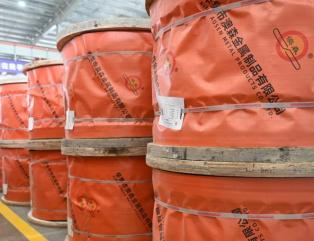

According to rope diameter and fixed length, select wooden reels, iron-wood reels, iron reels for packaging; internally wrapped with special moisture-proof and rust-proof paper, outer layer fully covered with PE waterproof film, isolating water vapor oxidation, preventing extrusion deformation during transportation, and preventing surface zinc layer collision and falling off, suitable for domestic and international long-distance combined transportation.

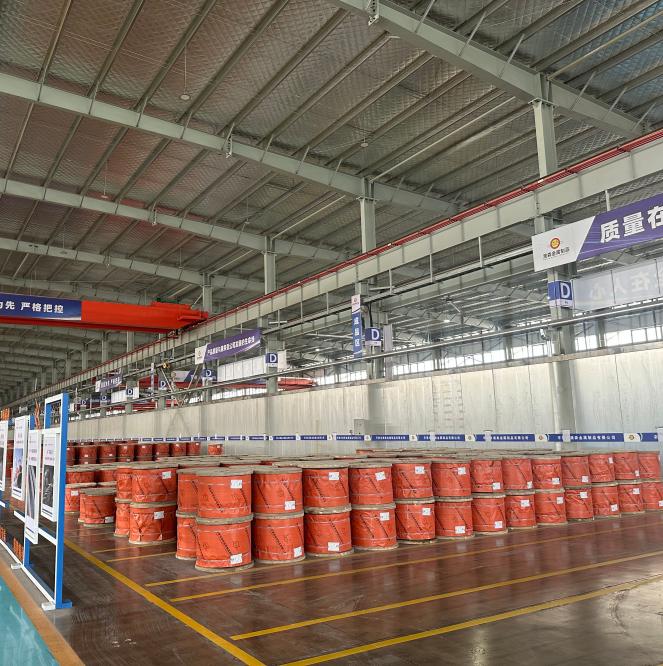

Main specifications have sufficient spot stock and support global shipment. Relying on Aosen Group's own complete logistics system, domestic full coverage of road transportation, sea transportation, and multimodal transportation; foreign trade orders are supported by container sea freight and China-Europe freight trains. Both small and large batch orders can be accepted, with strict fulfillment and on-time delivery according to contract agreed periods, suitable for scattered procurement and large-batch centralized procurement needs for power and steel structures.
Logistics

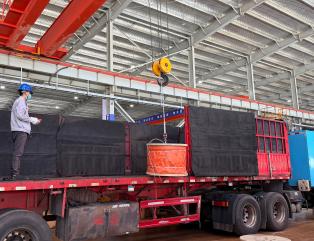

Aosen supports rail, road, sea, and multimodal transport. It has a fleet of over 1,800 vehicles, with a daily factory throughput of 80,000 tons.
