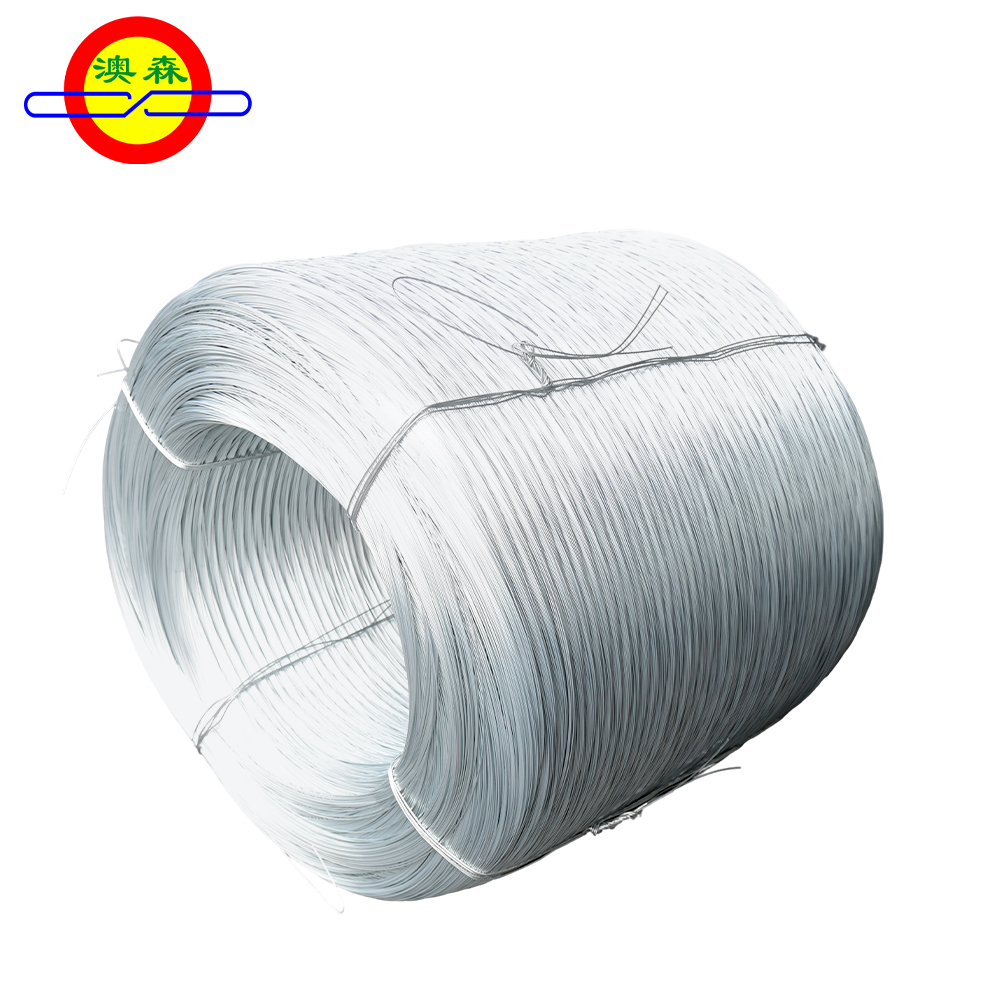

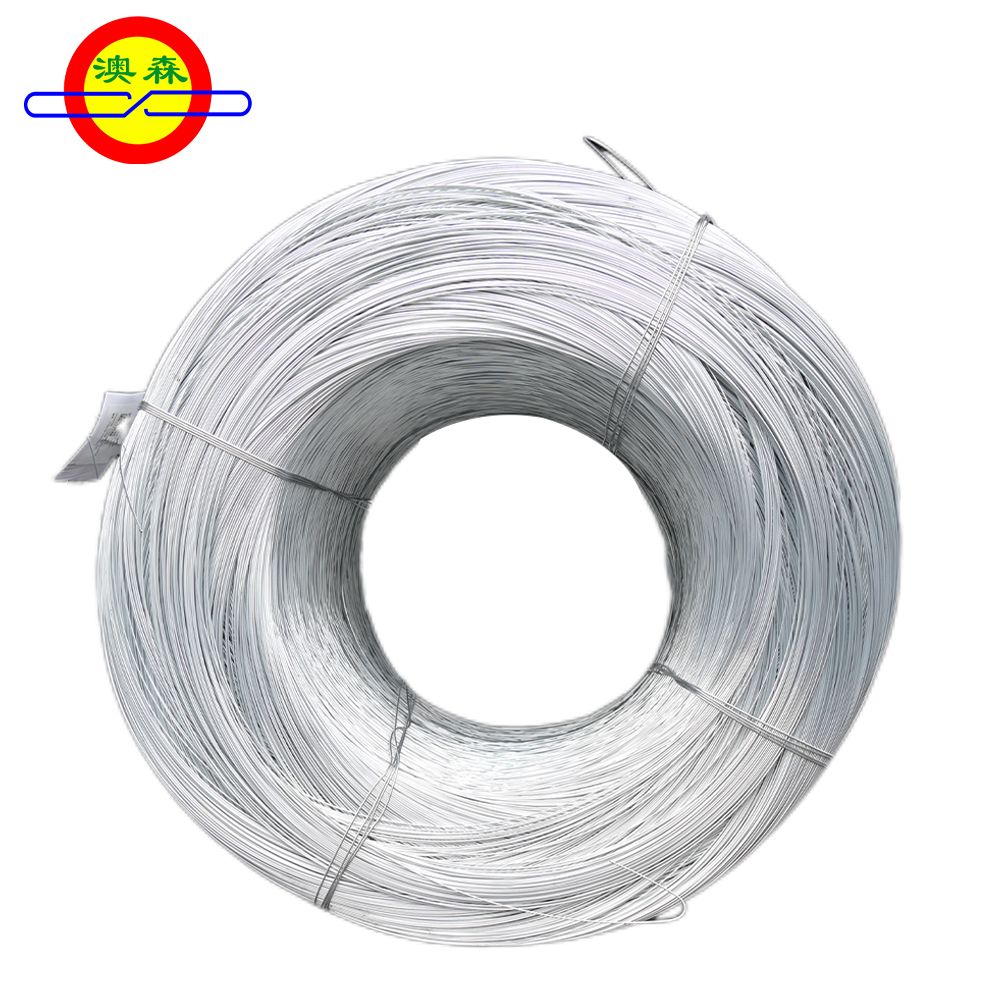

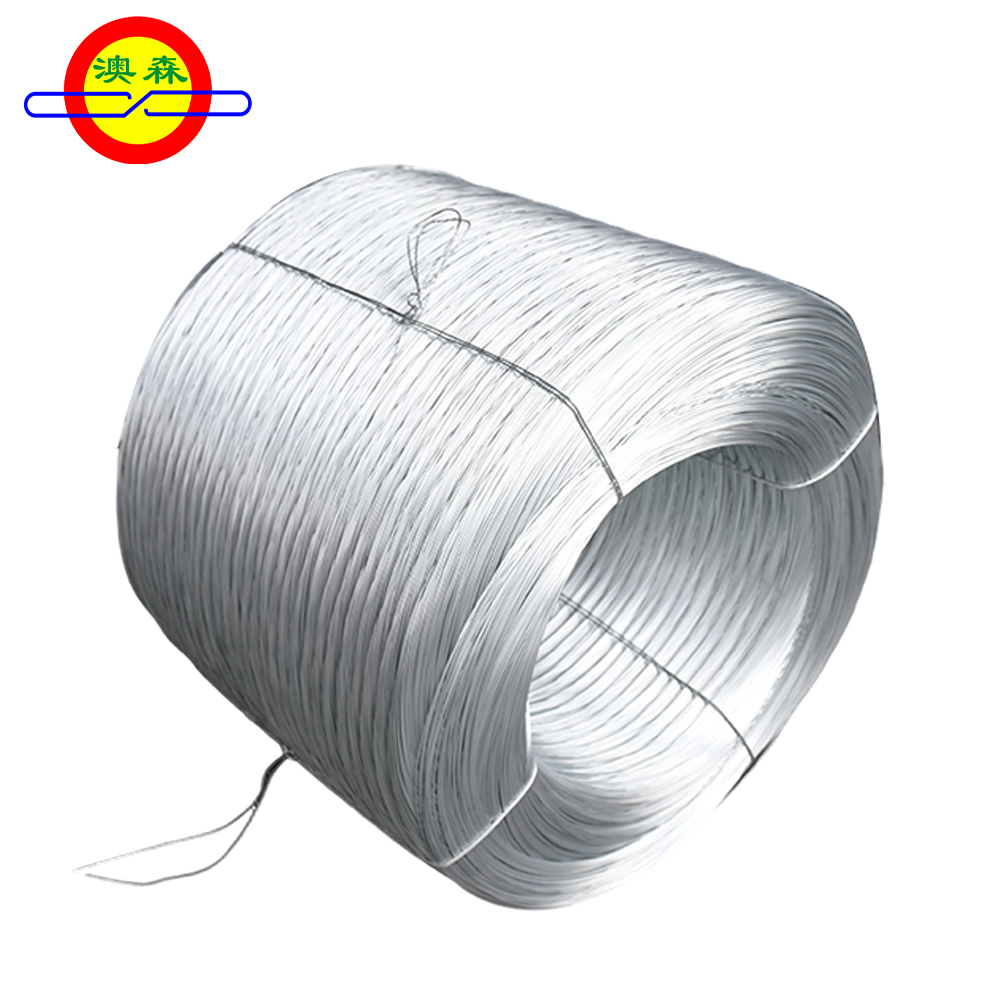

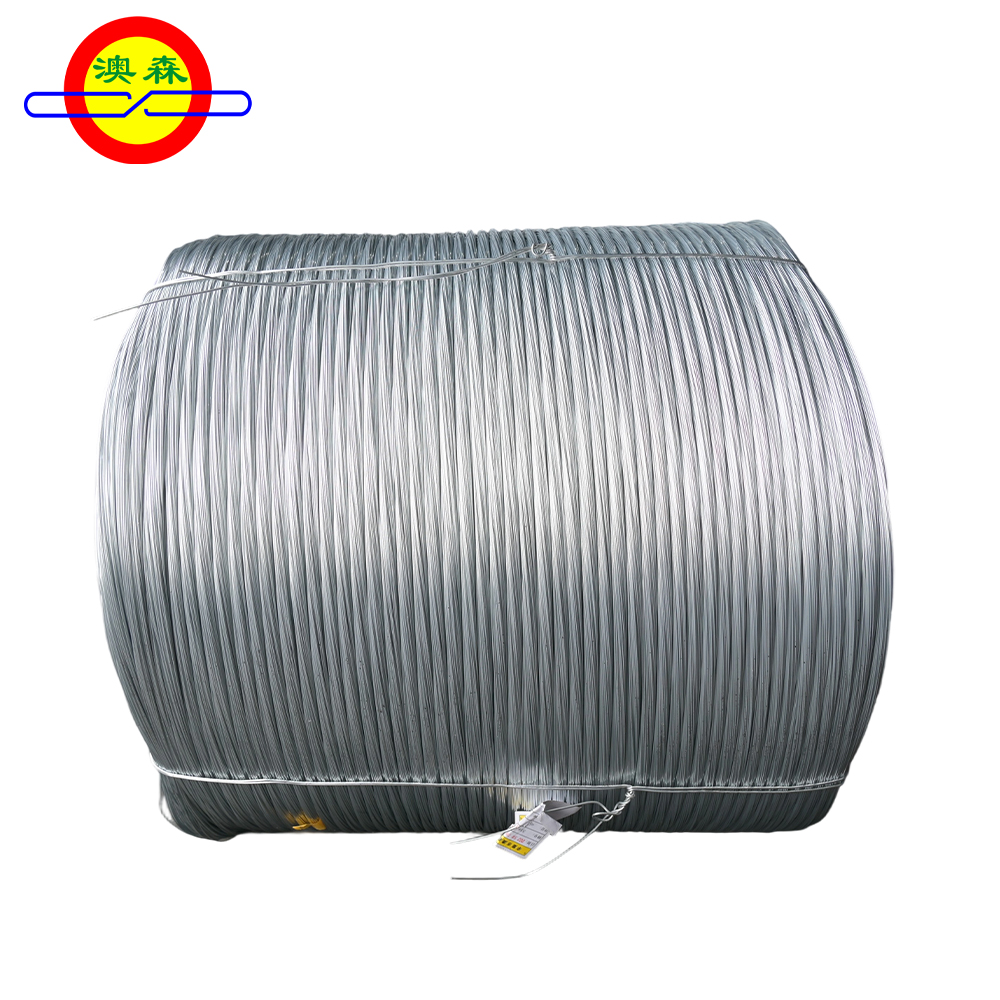

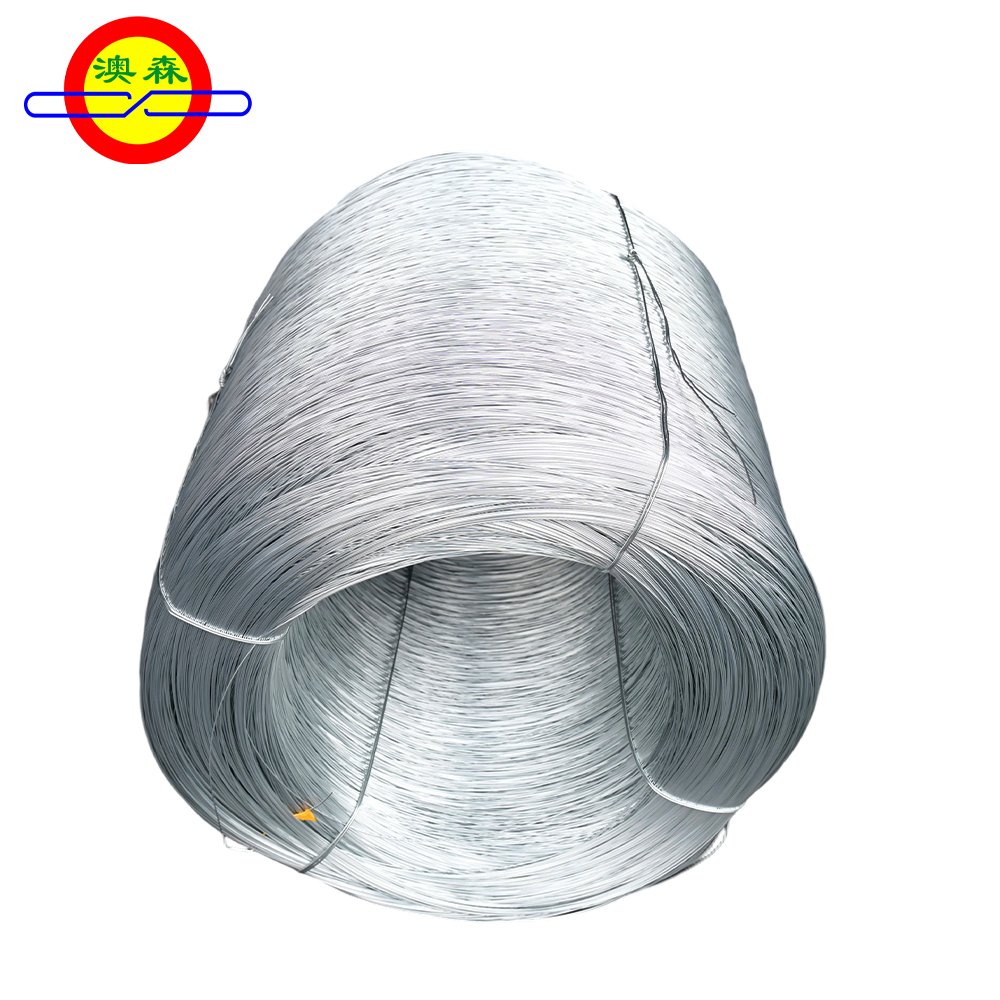

Aosen electro-galvanized steel wire is made from raw materials such as 45#, 55#, 60#, 65#, 70# steel through production processes including drawing-annealing-quenching-pickling-galvanizing. The zinc coating range of electro-galvanized steel wire produced by our company is 40-60g/m².
Characteristics: Uniform and bright zinc coating, excellent elongation and corrosion resistance.
Description
We are a professional manufacturer of electro-galvanized wire, hot-dip galvanized wire, phosphatized steel wire, spring steel wire and annealed wire.

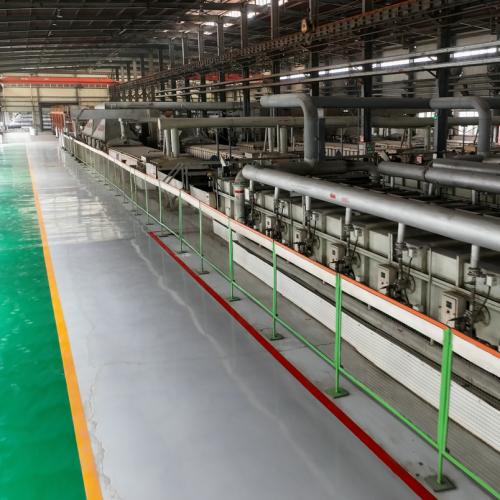

Equipped with fully automated production equipment, our factory adopts a high-precision tension and linear speed synchronization system to ensure the zinc coating remains undamaged with a uniform thickness. This achieves neat and tight coiling of products and maximizes adaptability to rapid mass production.
Galvanized Iron Wire: 1.8–5.0mm, Hot-selling Sizes: 1.9/1.95/2.0/2.5/2.65/3.0/4.25, Tensile Strength: 350–550MPa
Galvanized Steel Wire: 1.4–4.0mm, Hot-selling Sizes: 1.6/1.8/2.0/2.5/3.0, Tensile Strength: 800–1200MPa
Electro-galvanized Wire: Low process cost and excellent corrosion resistance. It is widely used in steel products such as fasteners, clothes hangers, welded mesh panels, and construction binding wire.
Hot-dip Galvanized Wire: Thick coating and long corrosion-resistant service life, with relatively low precision. It is mainly used for outdoor long-term service components such as power transmission towers, highway guardrails, livestock fencing and hillside protective netting.
Zinc coating thickness can reach up to 300g/㎡.
Product Customization: Raw materials, zinc coating thickness, tensile strength, weight, length, packaging method (e.g., plastic inside and woven outside), and other customer requirements.
We adhere to the following international standards in the supply of industrial HDG,EG,GI,GL wire products.
ASTM A641/A641M、ASTM B633
BS 443、BS EN 10244-2
JIS G 3547、JIS H 8641
ISO 1461、ISO 2081
Wire products meeting specific quality requirements can also be supplied upon request.
We also have a complete set of inspection equipment. We conduct inspections on each batch of products, and all products are delivered from the factory with accompanying inspection reports.
Product Parameters
| Product Name | Electro-galvanized Steel Wire |
| Wire Diameter（mm） | Ф1.4-Ф4.0 |
| Material | SAE1008 / SAE1006 / SAE1018 / SAE1045 SAE1055 / SAE1060 / SAE1065 / SAE1070 |
| Zinc Coating Amount（g/㎡） | 40-60 |
| Tensile Strength（MPa） | 800-1200 |
| Elongation（%） | >20% |
| Coating | Galvanized |
| Processing Method | Cold galvanizing |
| Advantages/Features | 1. Surface gloss: ⭐⭐⭐⭐⭐ 2. Uniform and smooth coating: ⭐⭐⭐⭐⭐ 3. Corrosion resistance: ⭐⭐⭐ 4. Good draw performance: ⭐⭐⭐⭐⭐ |
| Execution Standard | YB/T 4996-2022 |
| Is it alloy | No |
| Tolerance（mm） | -0.05 |
| Application Fields | Agriculture, automotive throttle cable, bridge rope, elevator rope18 |
| Processing Services | Packaging：①Plastic packaging ②Inner plastic outer woven Packing Method：Steel strap bundling |
| Support Customization | Materials、Zinc coating amount、Tensile strength、Weight、Length、Packaging、 Other customer requirements |

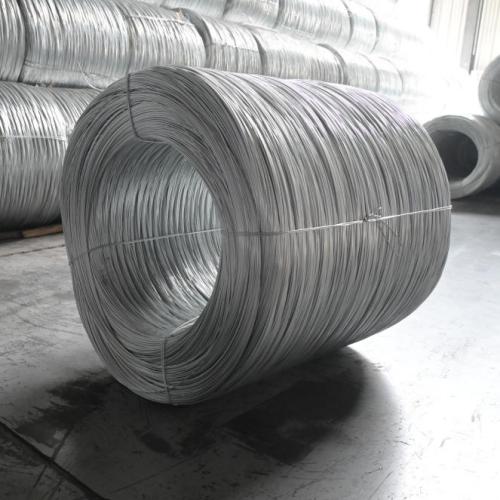

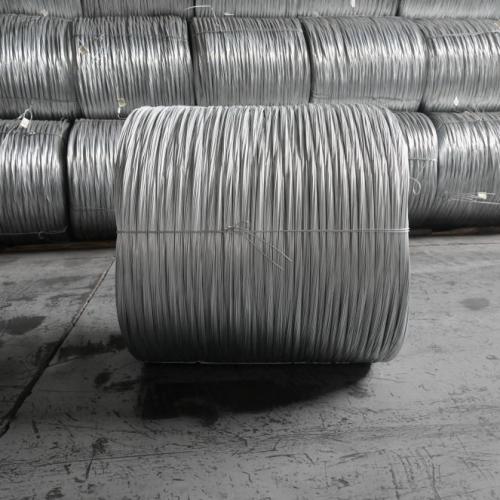

| Length Width Height （cm）/piece | Inner diameter 45 * Outer diameter 90 * Height 80 |
| Weight / Piece | 500kg-850kg |

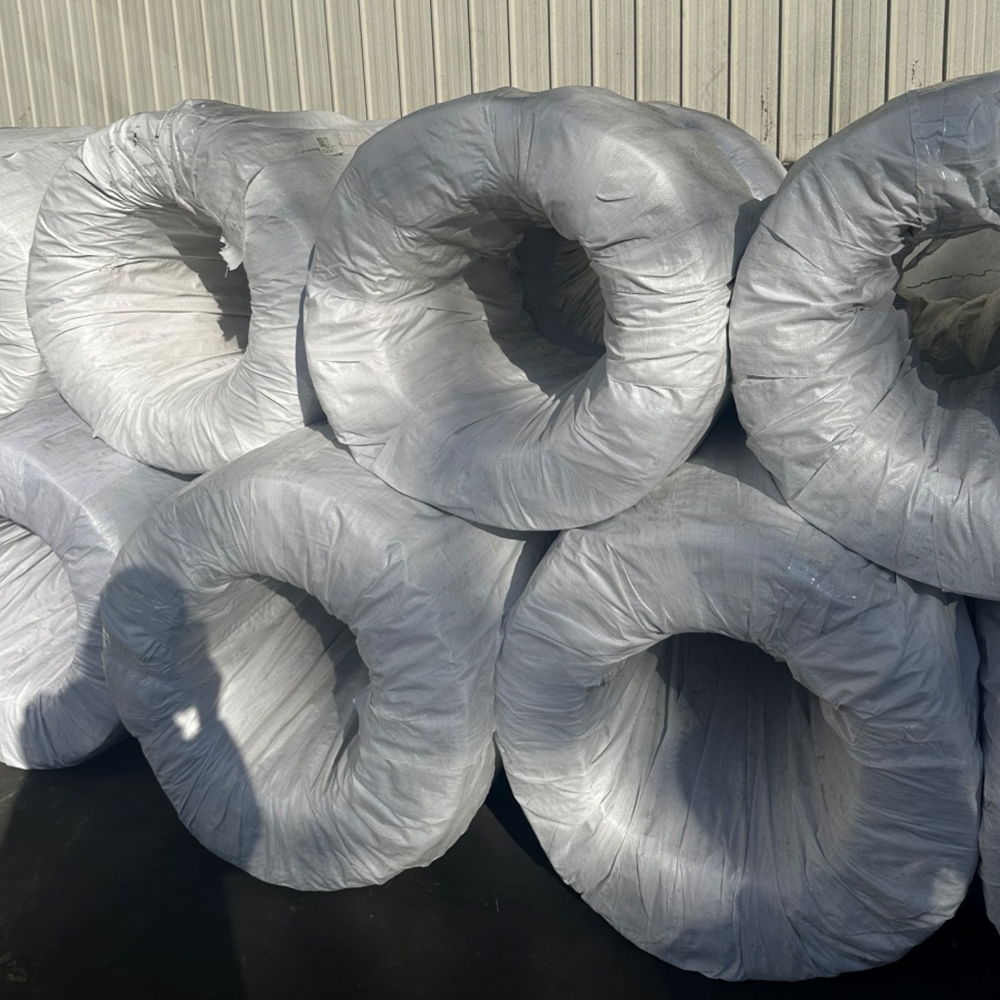

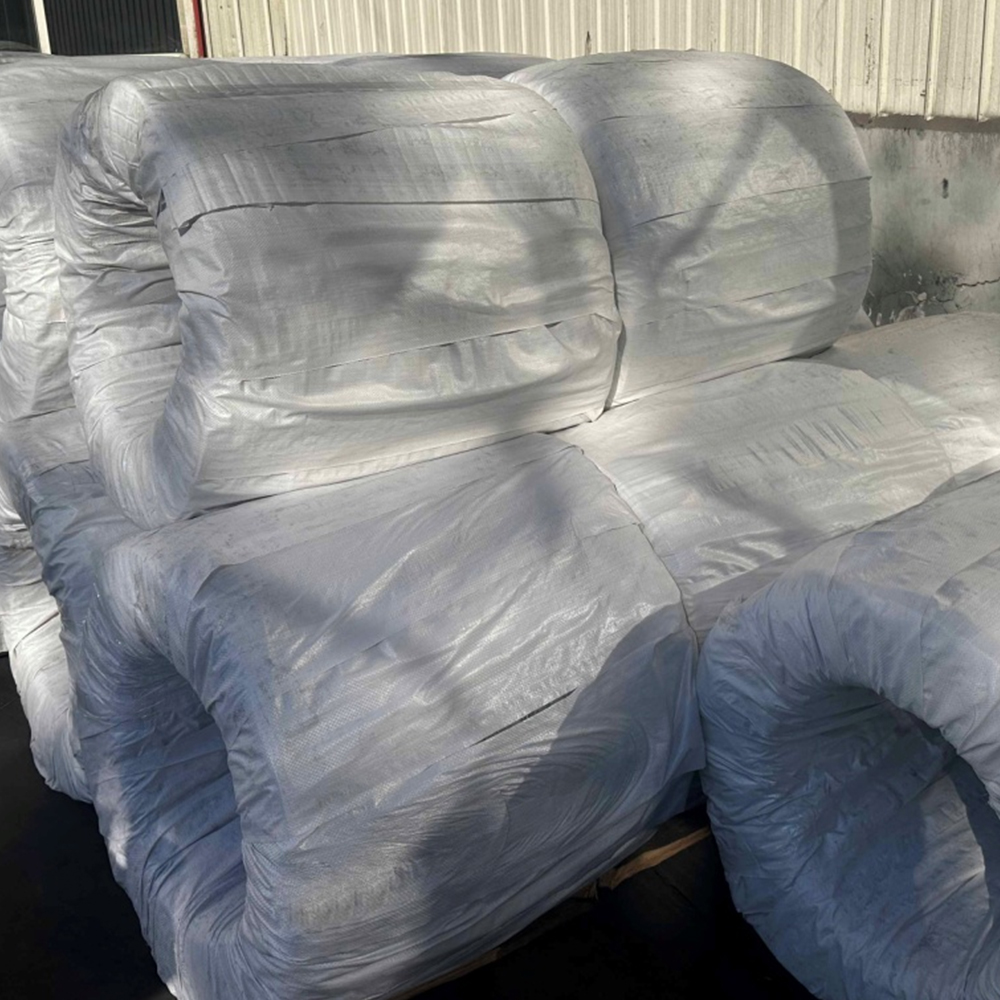

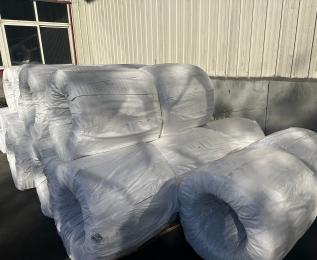

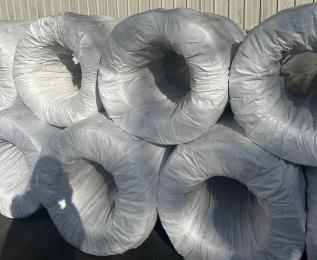

Packaging

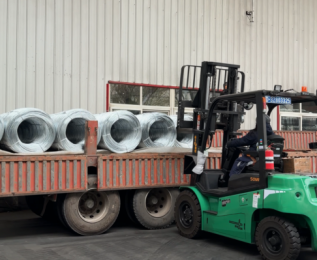

Logistics
Aosen Metal Products supports rail, road, sea, and multimodal transport. It has a fleet of over 1,800 vehicles, with a daily factory throughput of 80,000 tons.
Application Scenarios

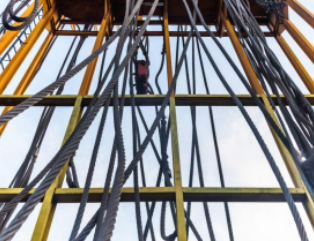

Wire rope

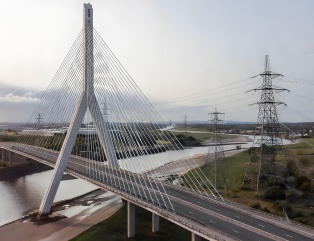

Bridge rope

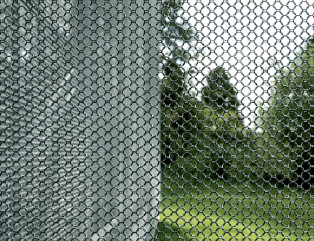

Diamond mesh

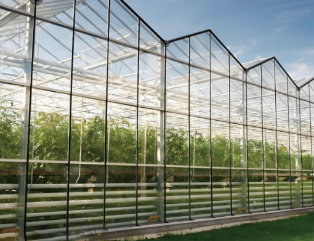

Agricultural scaffolding (greenhouse steel wire)

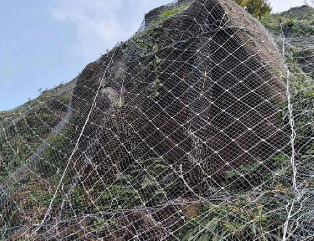

Mountain protection

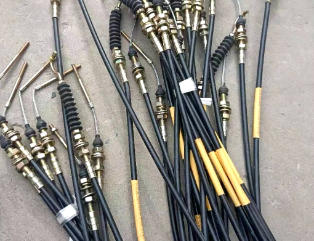

Throttle cable
Related Products
Electro-galvanized Iron Wire
Hot-dip Galvanized Iron Wire
Zinc-aluminum Alloy Iron Wire
Hot-dip Galvanized Steel Wire
Hot-dip High-zinc Iron Wire
Integrated Raw Material Supply: All wire is produced from steel sourced directly from Aosen Special Steel Group’s 7-million-ton annual capacity. This eliminates supply chain variability and ensures consistent chemistry and mechanical properties across orders.
Large-Scale Production Capacity: With 15 dedicated galvanizing lines—including 9 electro-galvanizing and 6 hot-dip galvanizing lines—and an annual capacity of 300,000 tons for galvanized products, we efficiently handle both high-volume standardized orders and technically specific custom requirements.
Comprehensive Quality Testing: Our in-house laboratory performs full-spectrum testing, including tensile strength verification, coating adhesion (winding test), torsion resistance, diameter measurement, and zinc layer weight analysis. We also support third-party inspections, including SGS, upon request.
Flexible Customization: Beyond standard diameters and tensile grades, we customize coating weight, packaging format, and mechanical properties to match specific application requirements, supported by a structured process from requirement docking to sample approval and mass production.
Proven Credentials: Aosen holds ISO 9001, ISO 14001, and ISO 45001 certifications, along with CE marking and RoHS compliance. Our facilities and processes have been recognized with transportation product certifications and supplier excellence awards from major engineering groups.
Corrosion Resistance: Zinc coating up to 300 g/m² protects against rust, salt fog, and moisture; available in electro-galvanized or hot-dip galvanized finish
Strong Coating Adhesion: Zinc layer resists flaking or cracking during bending, weaving, and welding
Controlled Strength: Tensile strength options from 350–550 MPa (general purpose) to 900–1200 MPa (high-strength structural applications)
Precise Dimensional Consistency: Tight diameter tolerances maintained through digitally monitored production
