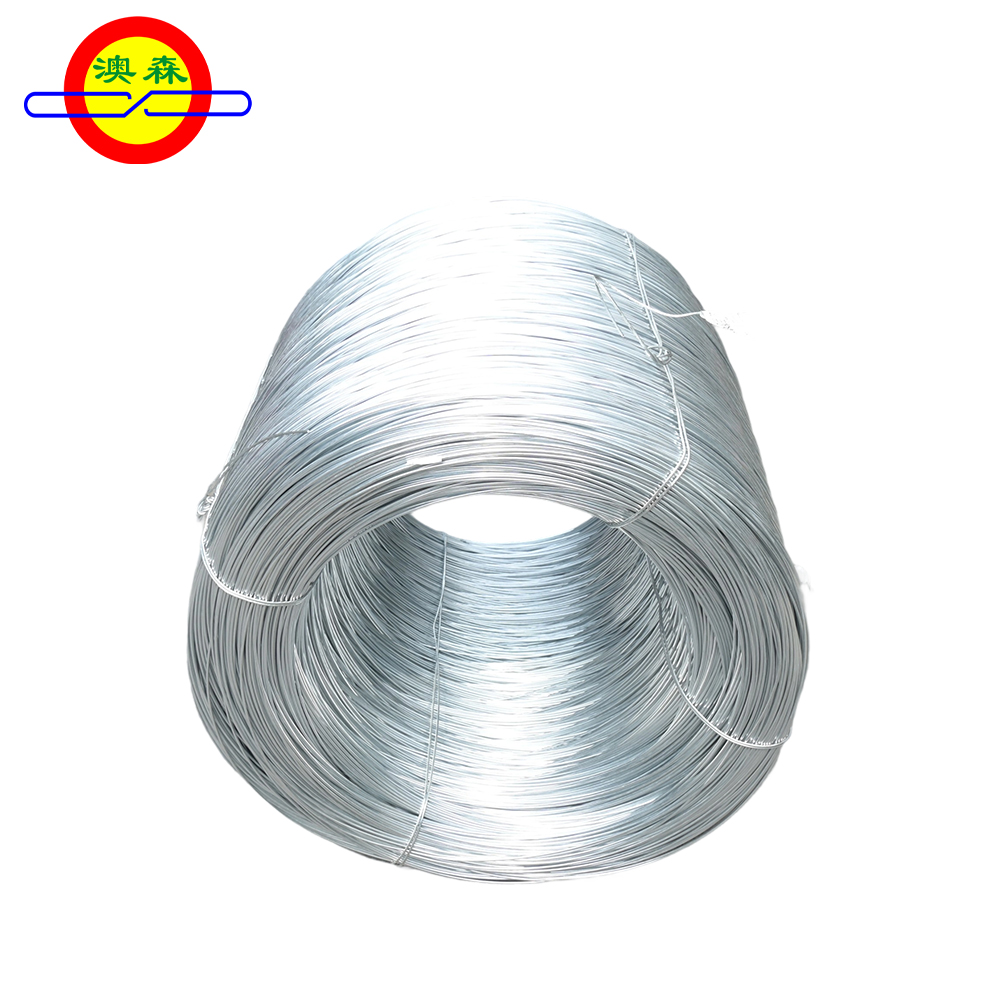

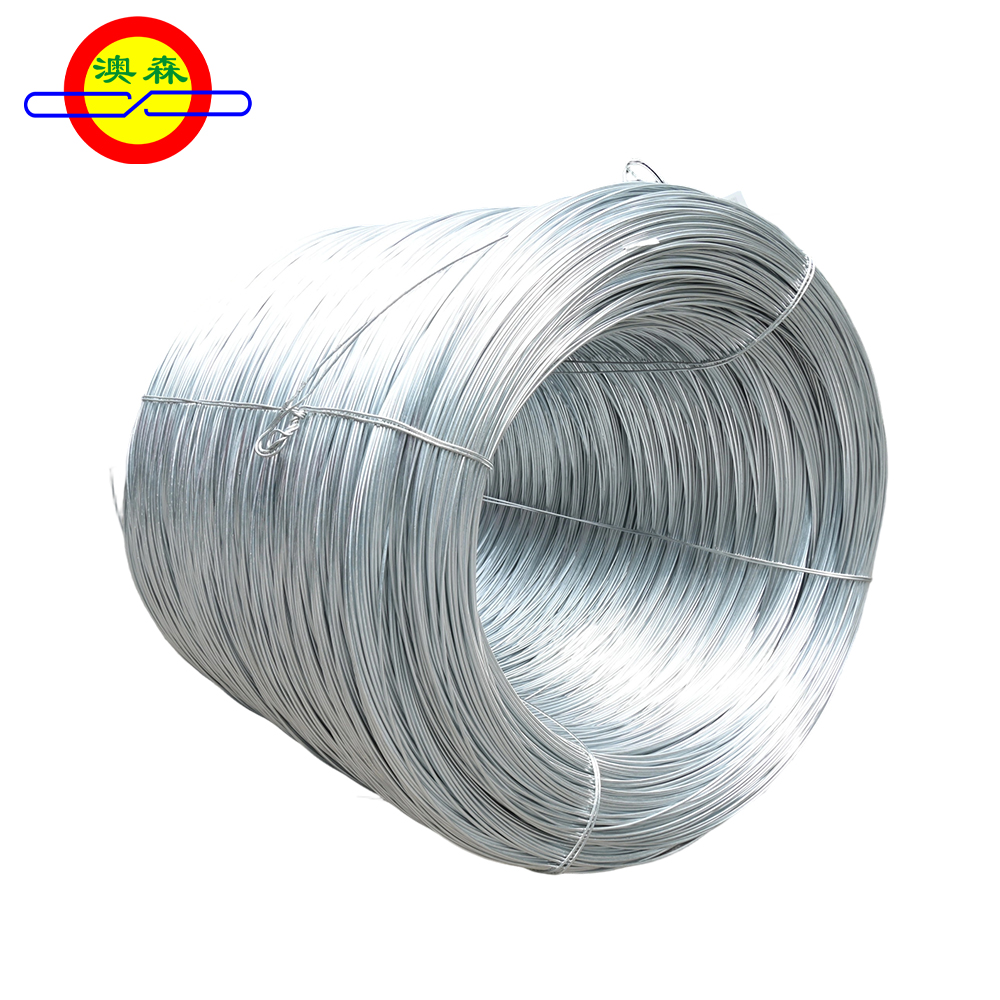

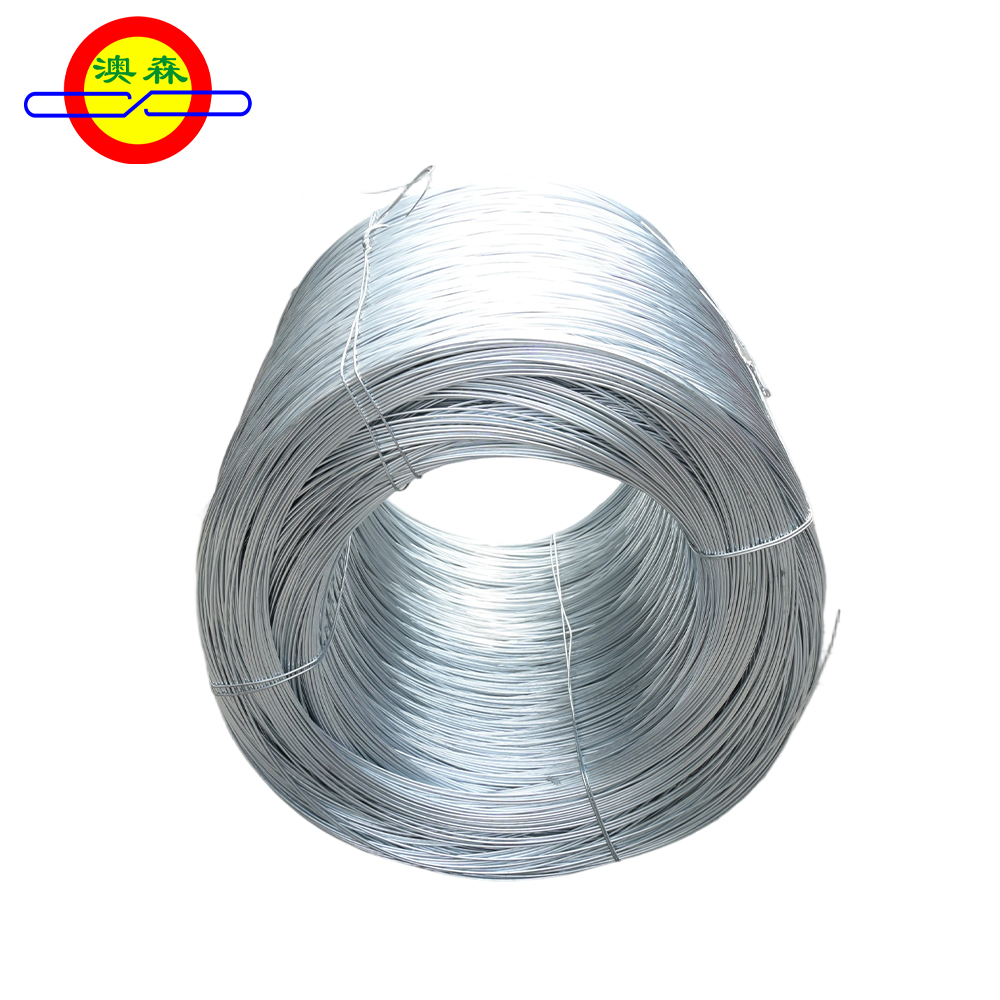

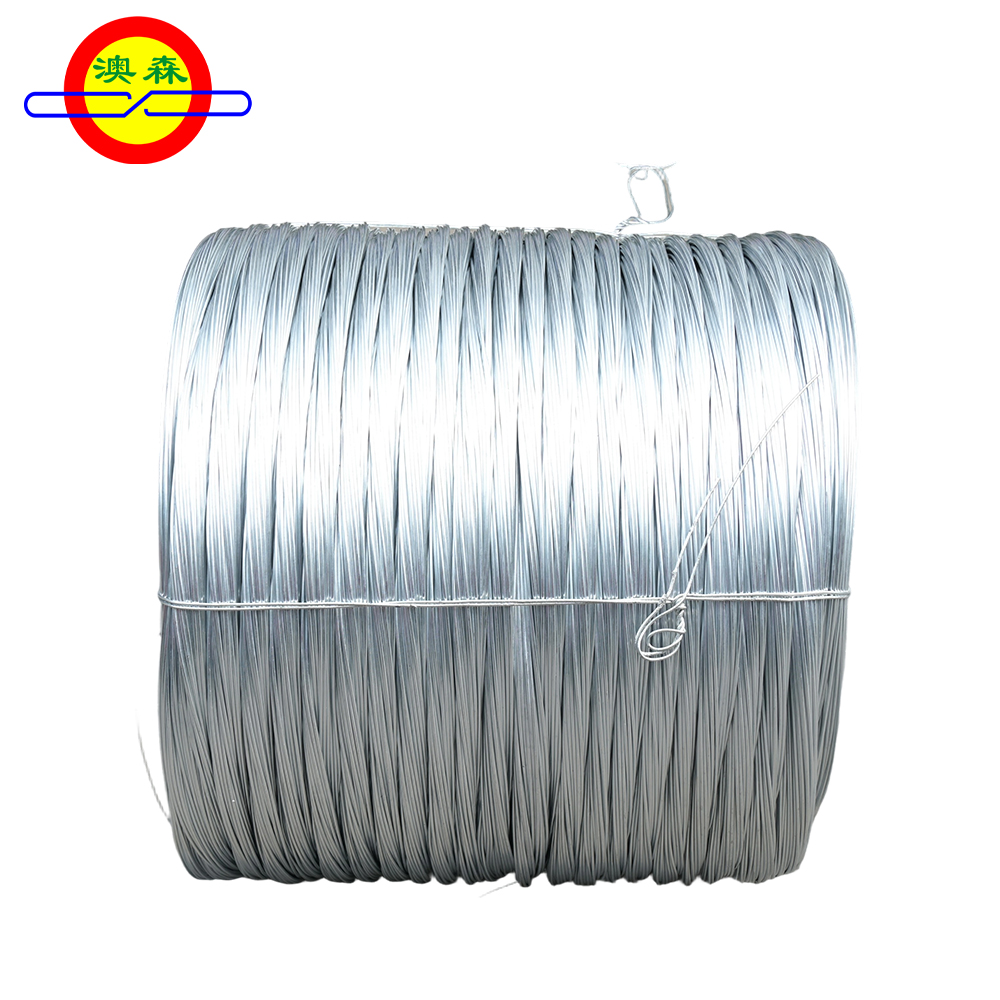

Hot-dip High-zinc Iron Wire

Description

We are a professional manufacturer of electro-galvanized wire, hot-dip galvanized wire, phosphatized steel wire, spring steel wire and annealed wire.

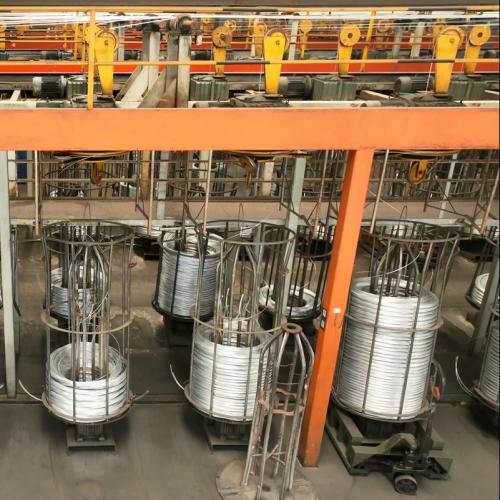

Equipped with fully automated production equipment, our factory adopts a high-precision tension and linear speed synchronization system to ensure the zinc coating remains undamaged with a uniform thickness. This achieves neat and tight coiling of products and maximizes adaptability to rapid mass production.

Galvanized Iron Wire: 1.8–5.0mm, Hot-selling Sizes: 1.9/1.95/2.0/2.5/2.65/3.0/4.25, Tensile Strength: 350–550MPa

Galvanized Steel Wire: 1.4–4.0mm, Hot-selling Sizes: 1.6/1.8/2.0/2.5/3.0, Tensile Strength: 800–1200MPa

Electro-galvanized Wire: Low process cost and excellent corrosion resistance. It is widely used in steel products such as fasteners, clothes hangers, welded mesh panels, and construction binding wire.

Hot-dip Galvanized Wire: Thick coating and long corrosion-resistant service life, with relatively low precision. It is mainly used for outdoor long-term service components such as power transmission towers, highway guardrails, livestock fencing and hillside protective netting.

Zinc coating thickness can reach up to 300g/㎡.

Product Customization: Raw materials, zinc coating thickness, tensile strength, weight, length, packaging method (e.g., plastic inside and woven outside), and other customer requirements.

We adhere to the following international standards in the supply of industrial HDG,EG,GI,GL wire products.

ASTM A641/A641M、ASTM B633

BS 443、BS EN 10244-2

JIS G 3547、JIS H 8641

ISO 1461、ISO 2081

Wire products meeting specific quality requirements can also be supplied upon request.

We also have a complete set of inspection equipment. We conduct inspections on each batch of products, and all products are delivered from the factory with accompanying inspection reports.

Product Parameters

Product Name	Hot-dip High-zinc Iron Wire
Wire Diameter（mm）	Ф2.0-Ф4.0
Zinc Coating Amount（g/㎡）	230-275
Tensile Strength（MPa）	385-495
Elongation（%）	>20%
Material	SAE1008 / SAE1006 / SAE1018 / SAE1045 SAE1055 / SAE1060 / SAE1065 / SAE1070
Coating	Coating
Processing Method	Hot-dip
Advantages/Features	1.Surface gloss：⭐⭐⭐⭐⭐ 2.Uniform and smooth coating：⭐⭐⭐⭐⭐ 3.Corrosion resistance：⭐⭐⭐⭐⭐ 4.Durability：⭐⭐⭐⭐⭐
Execution Standard	YB/T 5294-2009
Is it alloy?	No
Tolerance（mm）	-0.05
Application Fields	1.Construction industry: Used for making steel wire mesh, fences, scaffolding, bridge structures, etc.; 2.Agriculture: Used for making fences, grape trellises, greenhouse supports, etc.; 3.Industry: Used for making springs, cables, filter nets, conveyor belts, etc.; 4.Transportation: Used for making guardrails, isolation nets, and other traffic safety facilities; 5.Daily life: Used for making clothes hangers, hooks, and other household items.
Is it special steel?（If yes, list steel grade）	No

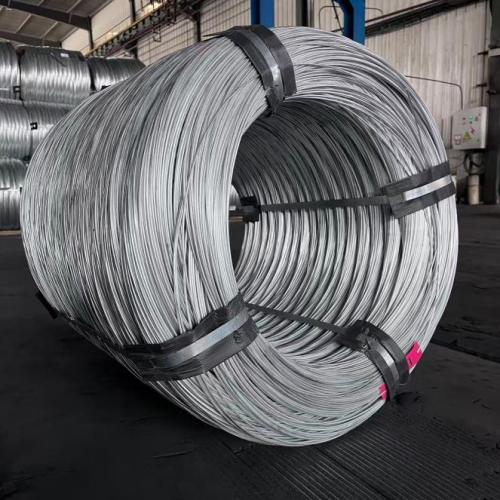

Processing Services	Packaging：①Plastic packaging ②Inner plastic outer woven Packing Method: Steel strap bundling
Support Customization	Materials、Zinc coating amount、Tensile strength、Weight、Length、Packaging、Other customer requirements
Length Width Height （cm）/piece	Inner diameter 45outer diameter 90 height 80
Weight/piece	500-800kg

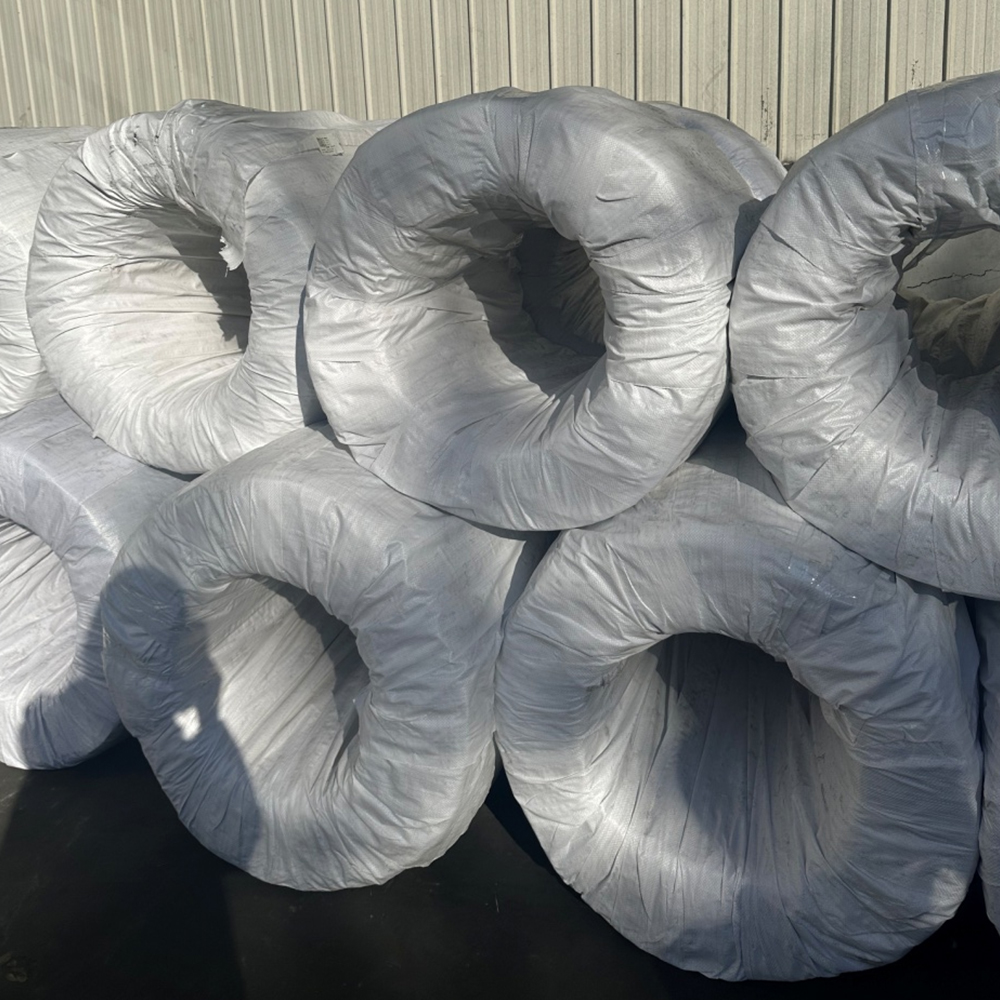

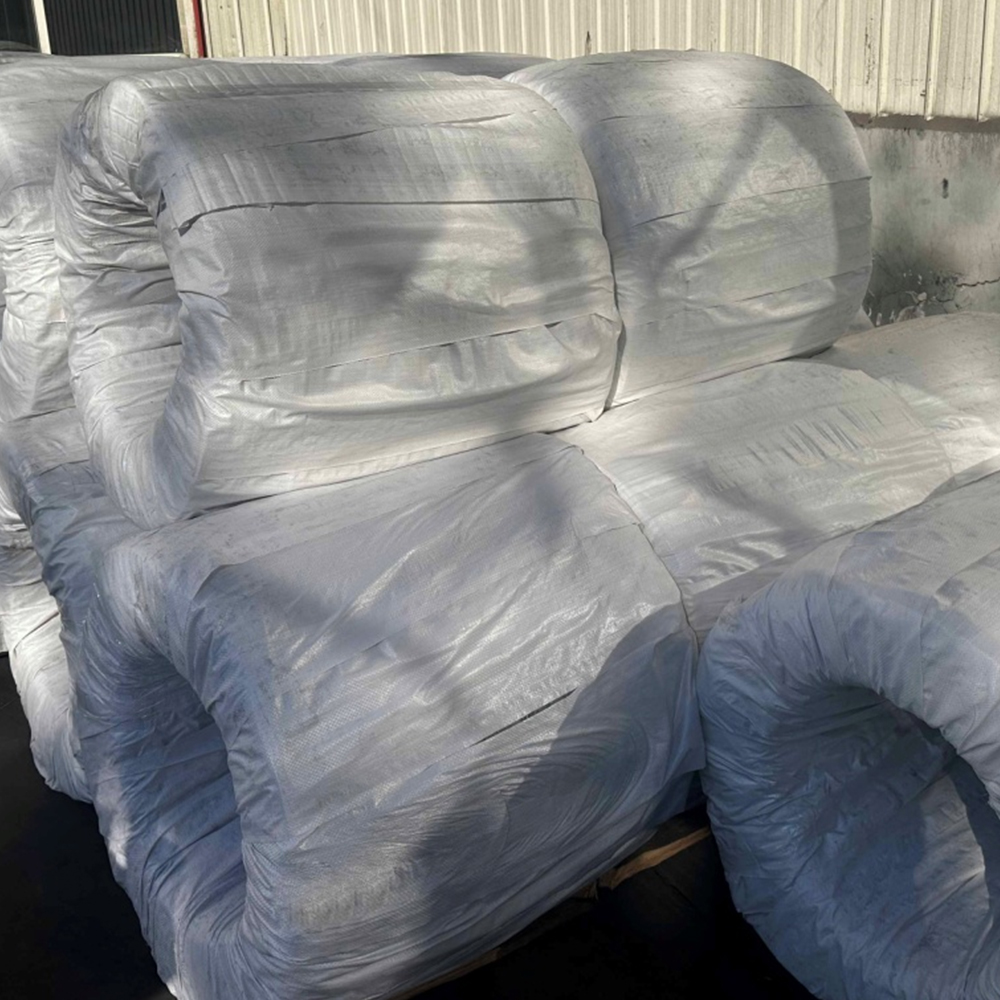

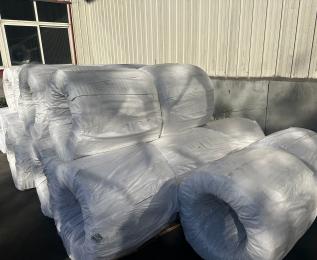

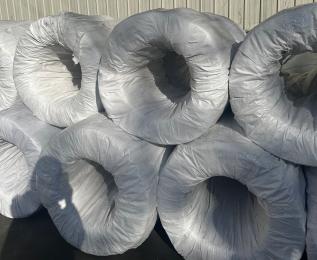

Packaging

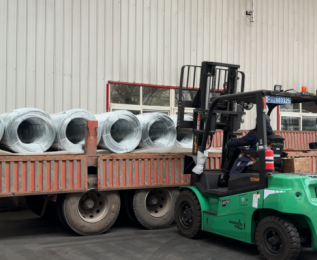

Logistics

Aosen Metal Products supports rail, road, sea, and multimodal transport. It has a fleet of over 1,800 vehicles, with a daily factory throughput of 80,000 tons.

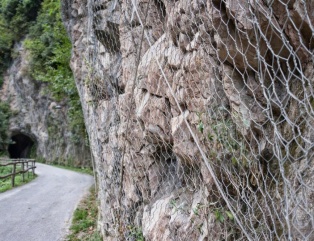

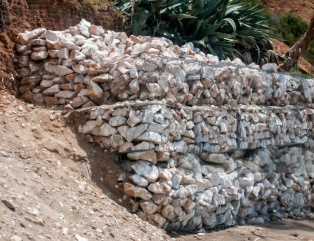

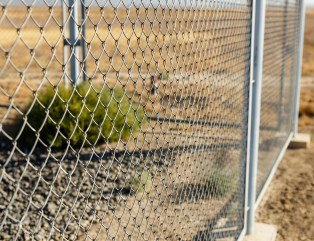

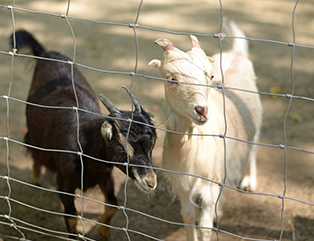

Application Scenarios
