Winding Test : Primarily tests coating adhesion, verifying whether the galvanized layer flakes or cracks under winding deformation.

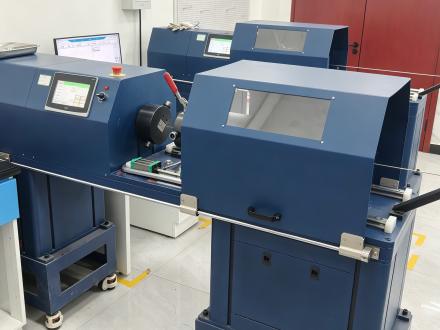

Torsion Test : Primarily tests torsional strength, toughness, and uniformity, verifying whether the galvanized wire fractures, delaminates, or loses zinc layer under torsion, assessing if its torsional resistance meets usage requirements.

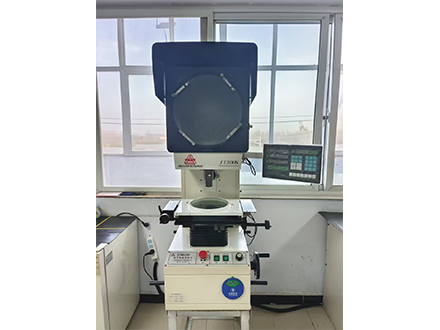

Diameter Measurement : Core detection of product dimensional accuracy, verifying if the actual diameter falls within standard tolerance ranges to ensure compliance with customer requirements.

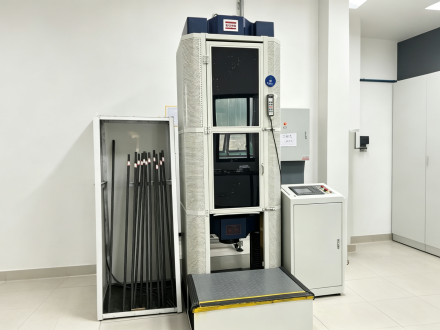

Tensile Test : Core detection of mechanical properties, including maximum force, tensile strength, elongation, and reduction of area. Verifies load-bearing capacity and plastic deformation under tension, ensuring the product meets strength and toughness requirements in use.

Repeated Bending Test : Primarily tests the repeated bending count of semi-finished wire. The equipment automatically counts through 90° reciprocal bending, reflecting the sample's deformation resistance and surface defects via repeated bending count.

Relaxation Test : Used to detect relaxation performance, with software settings supporting relaxation rate tests at 120 hours, 200 hours, 240 hours, and 1000 hours per different standards.

Hardness Test : Capable of Brinell, Rockwell, and Vickers tests, with multi-level test forces to meet various hardness testing needs.

Mechanical Performance Test : Includes maximum force, elastic modulus, yield force, total elongation at maximum force, tensile strength, fracture force, elongation after fracture, etc.

Observation Detection : Includes metallographic structure, decarburized layer, microcracks, and non-metallic inclusions in abnormal samples.

Raw Material Detection : Measures content of various elements.

Surface Quality : Includes uniform coating, no cracks, scars, or missed plating.

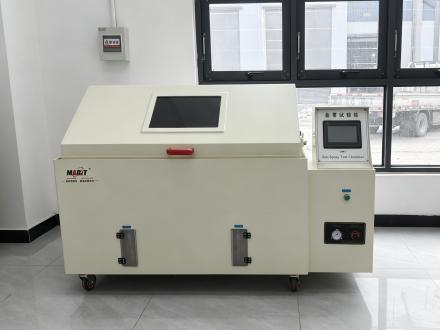

Zinc Layer Quality Detection : Tests zinc layer weight, thickness, adhesion, uniformity, and corrosion resistance of galvanized wire, ensuring effective base material protection and compliance with usage requirements.
